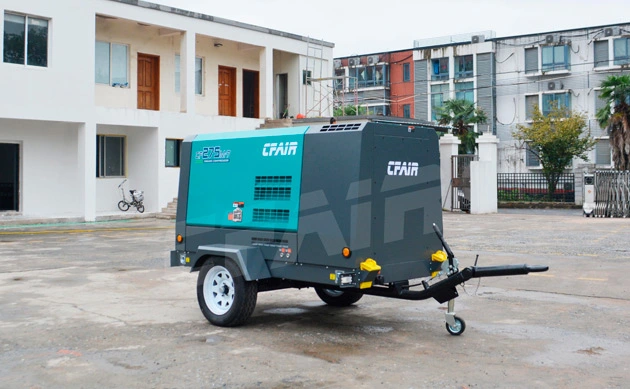

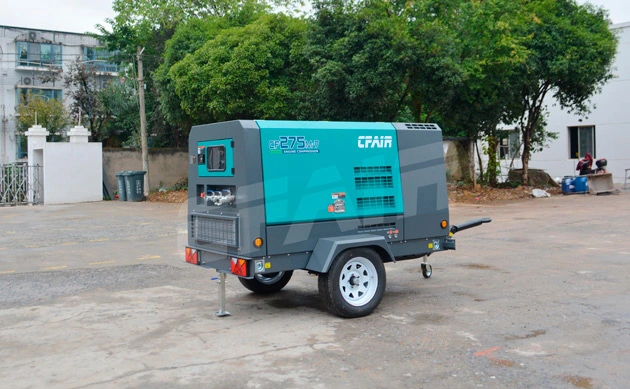

Efficiency in motion, the CF265MCI-7 is a towable compressor designed for versatility. With air delivery of 7.5 m³/min (265 CFM) and operating pressure is 7 Bar (101.5 PSI), it is powered by a ISUZU diesel engine. The integrated aftercooler ensures optimal performance, making it a portable powerhouse for various applications on the go.
Model: CF265MCI-7
Towable compressor with aftercooler
Air delivery: 7.5 m³/min | 265 CFM
Pressure : 7 Bar | 101.5 PSI

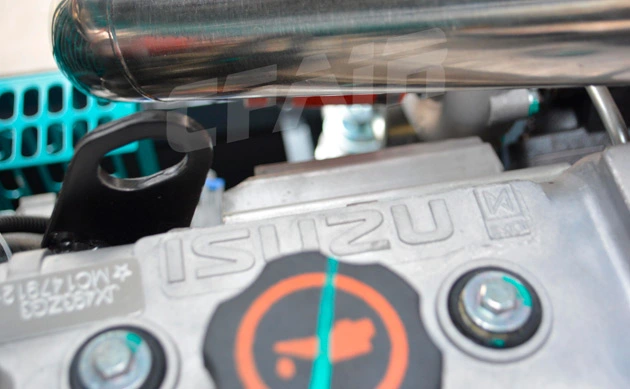

Compressor diesel engine: ISUZU
1)Versatile: CFAIR portable compressors are available in a wide range of sizes and pressures and are suited for many applications including, but not limited to, sandblasting, pavement breaking, and general air tool use. Their extensive options allow customization to meet virtually any demand. Units are ideal for rental, general construction, and utility services
2) Easy to use: Our user interface is very simple.Mobile air compressors are simple to operate, provide excellent component accessibility, and are easy to maintain.
3)Low cost of ownership: Air end from our diesel air compressor factory is for longer life and better efficiency with 15-20% more air per gallon of fuel than our competition. Superb reliability and simple maintenance save time and money. Our Anti-frost Valve protects air tools from freezing when the ambient temperature drops, significantly increasing tool service life.
4) Low noise: Their enhanced safety features and very low noise levels make them the perfect choice for any jobsite.
5)Easy Maintenance: Quick access air connections and large gullwing doors provide easy access for maintenance and servicing. Some air compressor OEM models may have interior storage compartments for storing tools and accessories.
Noise Control
• Super silent full load noise levels from as low as 64 dB(A) at 7 m.
• Low engine and air end speed design is intrinsically quieter.
• Steel body panels lined with sound absorbent material.
• Computer aided sound path analysis and attenuation design.
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.
Diesel Engine
• The engine match selection for each compressor model is based on achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
| MODEL | CF265MCI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |

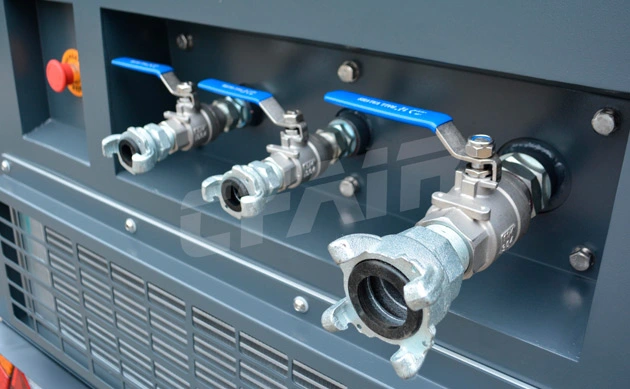

| Air Outlets | 3/4'' x 2 + 1-1/4'' x 1 | |
| Free Air Delivery | CFM (mm³/min) | 265 (7.5) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Discharge Air Temperature | °C | Atmospheric Temperature +20°C |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection, Turbocharged | |
| Displacement | L | 2.771 |
| L X W X H | mm | 3630*1700*1770 |
| Weight | kg | 1380 |
Note: Please feel free to contact us if any more customized requirements!
The CF265MCI-7's mobility, robust air delivery, and aftercooler functionality make it indispensable across diverse industries and applications.
Construction Sites: The air compressor for construction site powers pneumatic tools for various tasks, from drilling to concrete work.
Roadside Repairs: Ideal for on-the-spot repairs, providing compressed air for maintenance tasks.
Supports pneumatic applications in large-scale infrastructure development.
Used in utilities maintenance work for tasks like cleaning and equipment upkeep.
Agricultural Tasks: Supports agricultural operations, providing compressed air for equipment and tools.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
