Pull Behind Air Compressor CFAIR CF275MCI-7 Diesel Engine Driven

CF275MCI-7, a towable compressor designed for versatility. This portable powerhouse delivers an impressive air delivery of 7.7 m³/min (275 CFM) at a pressure of 7 Bar (101.5 PSI). The heart of its performance lies in a robust ISUZU diesel engine, ensuring reliability on the move. With an integrated aftercooler, this compressor excels in preventing overheating, making it an indispensable tool for diverse applications in construction, maintenance, and beyond. Whether you're on the road or at the worksite, the CF275MCI-7 from CFAIR brings efficiency wherever it goes.

  • Model: CF275MCI-7

  • Towable compressor with aftercooler

  • Air delivery: 7.7 m³/min | 275 CFM

  • Pressure: 7 Bar | 101.5 PSI

  • Compressor diesel engine: ISUZU


Features of Pull Behind Air Compressor CFAIR CF275MCI-7 Diesel Engine Driven

1)Axle: This part connecting compressor to the ground, including suspension system, wheels and all related parts. Suspensions can be assured with springs (sprung axle) or leaf springs (leaf spring axle). Wheels are of different size, to match the weight of the machine and according to the type of towing.

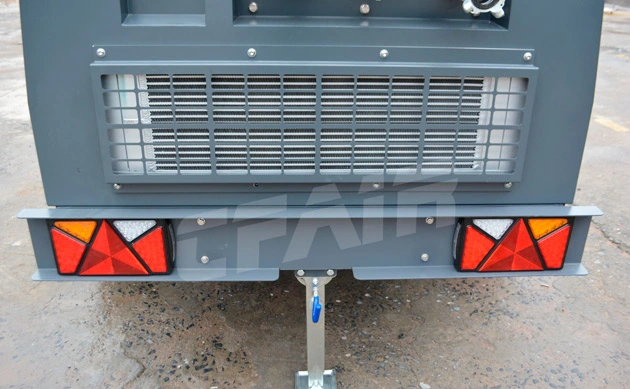

2) Lights: System with rear lights and reflectors

3)Drawbar: The drawbar is the rigid connection between diesel powered air compressor and towing vehicle. It can be at fixed height (gooseneck bend or straight angles) or adjustable through joints.

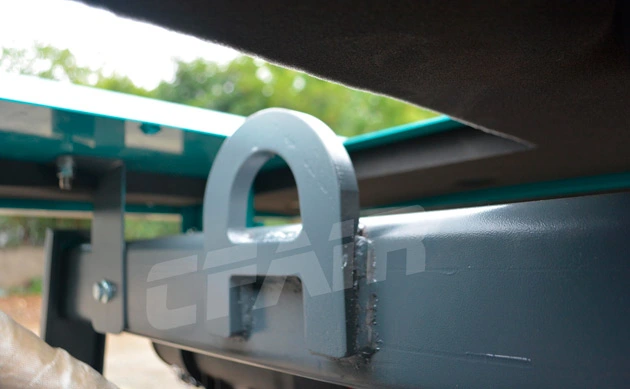

4)Connection: This is the mean to connect physically the drawbar to the towing vehicle. It can be through tow eyes or ball concection, both of different diameter.

5) Low noise: Their enhanced safety features and very low noise levels make them the perfect choice for any jobsite.

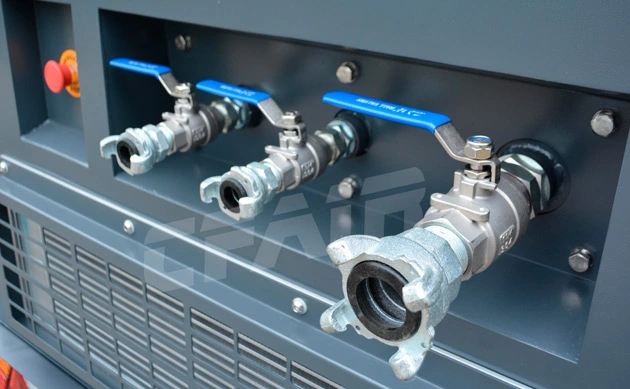

6)Easy Maintenance: Quick access air connections and large gullwing doors provide easy access for maintenance and servicing. Some models may have interior storage compartments for storing tools and accessories.

7)Colur: Customed


Exclusive pneumatic control system: developed by CFAIR, one of the professional diesel air compressor suppliers, to adjust automatically engine rotation speed, depending on the air to be delivered.This system is highly reliable and ensures fuel consumption saving.

COMPRESSOR: Max operation pressure/Free Air Delivery/Minimum working pressure Drive system engine-airend Compressor cooling system Oil cooling capacity/Outlet valves/Noise level EECno 2000/14 Battery capacity/Fuel tank capacity


Diesel Engine:

1)The engine match selection for each compressor model is based on achieving optimum performance and reliability with the lowest possible fuel consumption.

2)Only premium quality engines are used including CUMMINS. All are backed up by their own worldwide parts and service networks.

3)Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.

4)Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.

Specs of Pull Behind Air Compressor CFAIR CF275MCI-7 Diesel Engine Driven

MODEL
CF275MCI-7
Air End Type
Rotary Twin Screw, Single stage
Air Outlets
3/4'' x 2 + 1-1/4'' x 1
Free Air DeliveryCFM (mm³/min)275 (7.7)
Working Pressurebar (psi)7 (101.5)
Discharge Air Temperature°CAtmospheric Temperature +20°C
Engine Model
ISUZU
Fuel
Diesel
Emission
China Stage II
Engine Type
4 cylinder, Direct-injection, Turbocharged
DisplacementL2.771
L X W X Hmm3630*1700*1770
Weightkg1380

Note: Please feel free to contact us if any more customized requirements!

Application of Pull Behind Air Compressor CFAIR CF275MCI-7 Diesel Engine Driven

CFAIR Towable Compressor with Aftercooler, CF275MCI-7, it's mobility and powerful performance make it a versatile solution for a wide range of applications across different industries.

  • Construction Projects: The air compressor for road construction powers pneumatic tools for tasks such as drilling, jackhammering, and concrete work.

  • Roadside Repairs: Ideal for on-the-spot repairs, providing compressed air for maintenance tasks.

  • Mobile Workshops: Perfect for mobile workshops, offering compressed air for various applications.

  • Agricultural Operations: Facilitates agricultural tasks, providing compressed air for equipment and tools.
