Oil-free diesel compressors play a crucial role in the oil and gas industry for tasks such as pipeline maintenance, wellhead operations, and offshore platform maintenance. We offer industrial solutions for the oil and gas industry that perform reliably under unfavorable environmental conditions. Get in touch with the experts at CFAIR today to learn more.
100% Oil-free
Airflow rated at 1600 CFM @10.3 bar
Emergency shutdown switch
Spark arrestor
After cooler
Over speed shutdown system
Battery isolator switch
Extra fuel connector
Efficient diesel-powered engine with EPA T4F / EV Stage V emission standard are available
Forklift pockets standard for ease of transport
Lift bail provides fixed point for overhead lifting

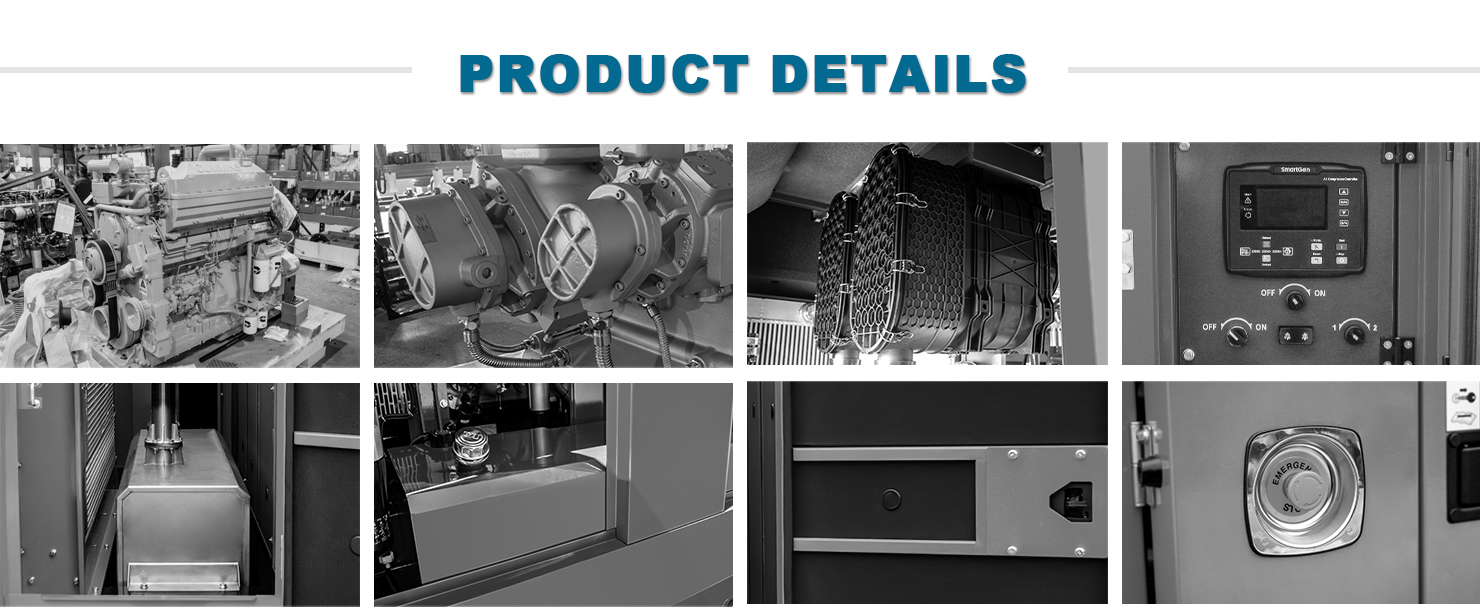

Excellent components for Airend:
1)Original Germany GHH air end
2)Double stage compression
3) Superior Sweden SKF element bearings
Diesel Engine: Heavy Duty and Less Fuel Consumption Compared to Similar engine Designs, better in durability and longevity.
Superior Air Filter and Oil Filter:
1)Superior air filter with two-stage dust removal and filtering system with effciency of up to 99.9% even in heavy-duty environments
2) Extends the service life of the compressor
parts and components, ensures high air quality
Cooler System: Adopting large cooling area design, oil-cooled and water-cooled side-by-side dual cooling method, independent fins and channels, uniform cooling, good heat dissipation, high temperature resistance, suitable for use in harsh environments such as high temperature and high humidity in the field
Onboard Heaters: For cold weather starting and operation
Easy to Move: Running Gear with Steerable Front Axle, for quick and easy transport onsite.
Highest Air Quality: 100% oil-free clean air, providing safety for the food, petroleum and chemical industries.
Easy to Operate: Controller for easy access to all compressor operation data and pressure adjustment.
Safety Features:
1)Air shut-off for overspeed protection
2)Spark Arrestor (DPF) for fire safety
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.
Diesel Engine feature:
1）Each compressor model is equipped with a diesel engine selected to maximize performance and reliability while minimizing fuel consumption.
2）It achieves industry-leading standards in fuel efficiency, exhaust emissions, and noise levels. Additionally, an automatic fuel priming and air bleed system eliminates the need to manually open injector lines in case of fuel depletion.
3）Additionally, it incorporates a two-stage fuel filtration system comprising a water sedimenter and a high-capacity pleated filter element.

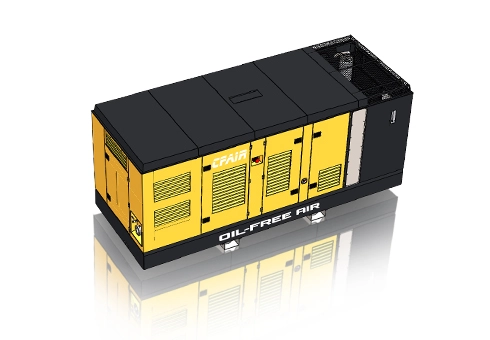

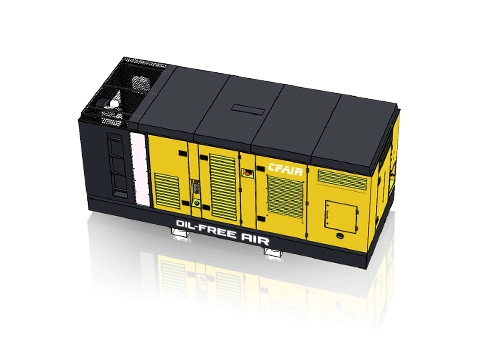

| MODEL | CFOF1600MK-10.3 | |
| Air End Type | Rotary Twin Screw, Oil-Free | |
| Air Outlets | 2'' x 2 | |
| Free Air Delivery | CFM (mm3/min) | 1600 (45) |
| Working Pressure | bar (psi) | 8.8 (127.6) |
| Engine Model | CUMMINS | |
| Fuel | Diesel | |
| Emission | CHINA II / EU Stage V / EPA T4F | |
| Engine Type | 6 cylinder, Direct-injection | |
| Displacement | L | 13 |
| L X W X H | mm | 5300*2200*2350 |
| Weight | kg | 7500 |
Note: Please feel free to contact us if any more customized requirements!

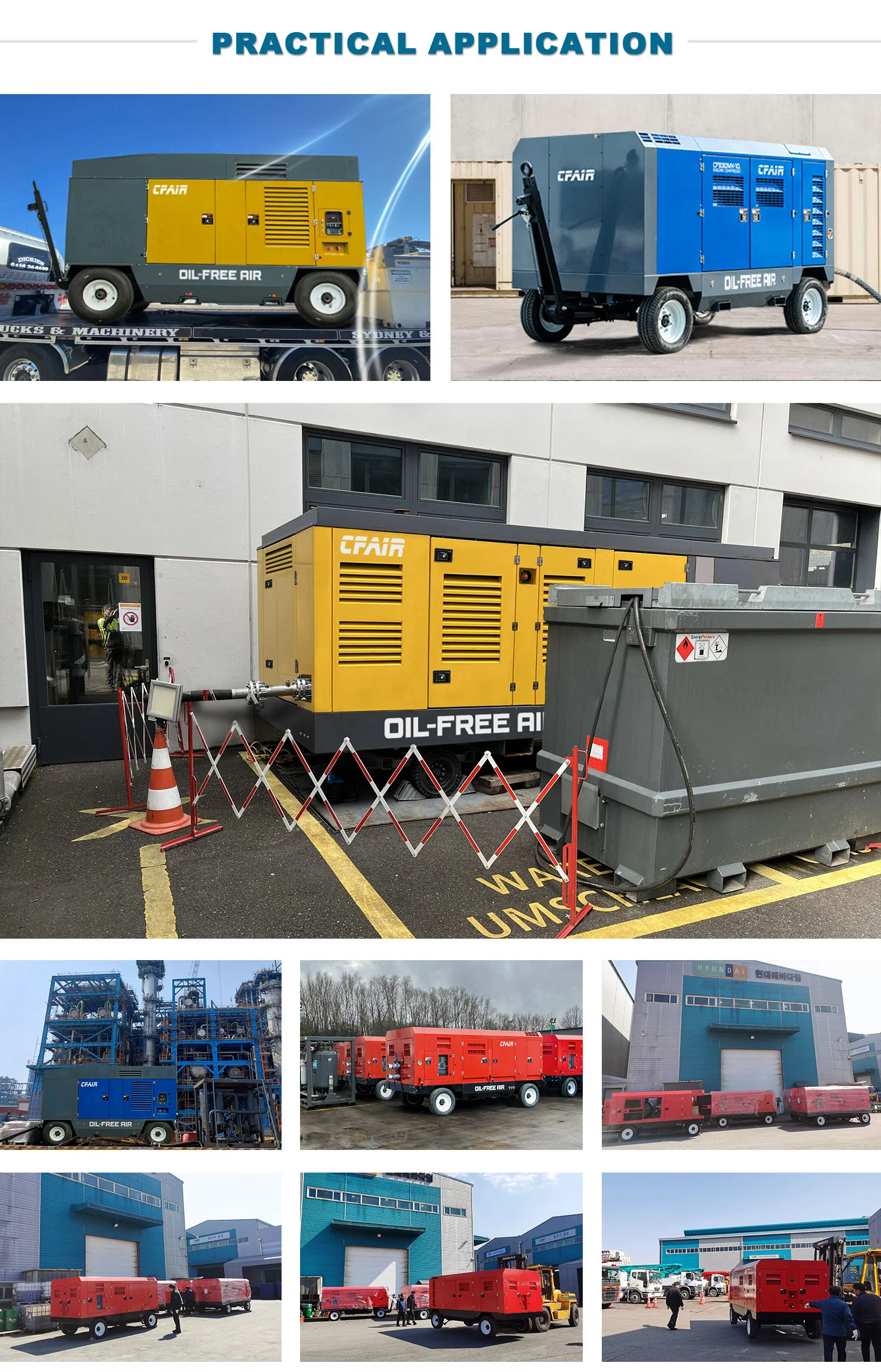

Pipeline Maintenance: Oil and gas pipelines require regular maintenance to ensure optimal performance and safety. Oil-free diesel compressors are used to power pneumatic tools for tasks such as welding, cutting, and maintenance of pipeline infrastructure.
Wellhead Operations: In oil and gas extraction operations, wellheads require regular servicing and maintenance. Oil-free diesel compressors provide the compressed air needed to operate pneumatic tools for tasks like wellhead cleaning, maintenance, and repair.
Offshore Platform Maintenance: Offshore oil and gas platforms are subjected to harsh environmental conditions and require frequent maintenance to ensure operational efficiency and safety. Oil-free diesel compressors are transported to offshore platforms to provide compressed air for tasks such as painting, sandblasting, and corrosion control.
Underwater Operations: Oil-free diesel compressors from CFAIR, one of the leading diesel air compressor suppliers, are used in underwater operations related to oil and gas exploration and extraction. They provide the compressed air needed for diving operations, underwater welding, and inspection of underwater infrastructure.
Exploration Drilling: During oil and gas exploration drilling, this type of diesel powered air compressor is used to provide the compressed air necessary for drilling rigs. Compressed air is used to power pneumatic drilling equipment and to clean debris from the borehole.
Emergency Situations: Oil and gas facilities may encounter emergency situations such as leaks or equipment failures that require immediate response. The oil free diesel air compressor can be quickly deployed to provide compressed air for emergency response activities, including containment, cleanup, and repair operations.
Remote Locations: Many oil and gas operations are located in remote areas where access to electricity may be limited. Oil-free diesel compressors offer a portable and self-contained solution for providing compressed air in these remote locations, supporting various maintenance and operational tasks.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
