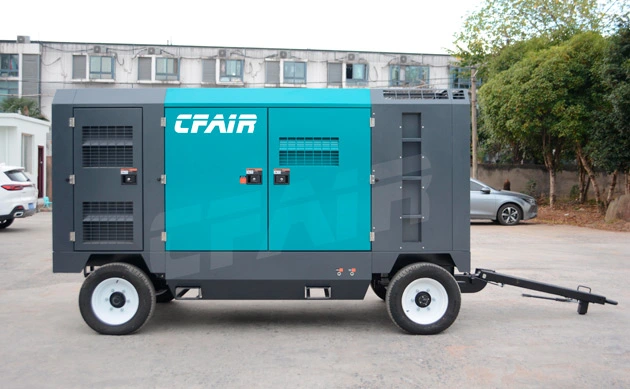

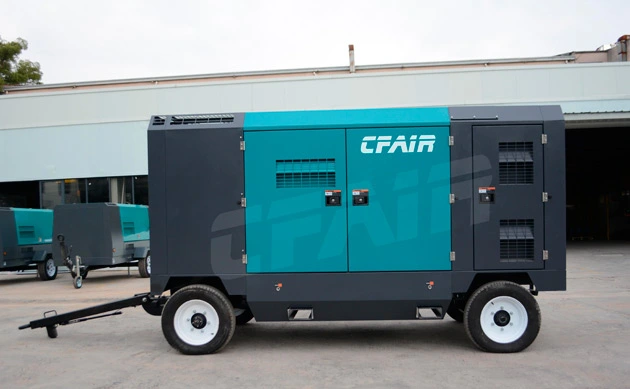

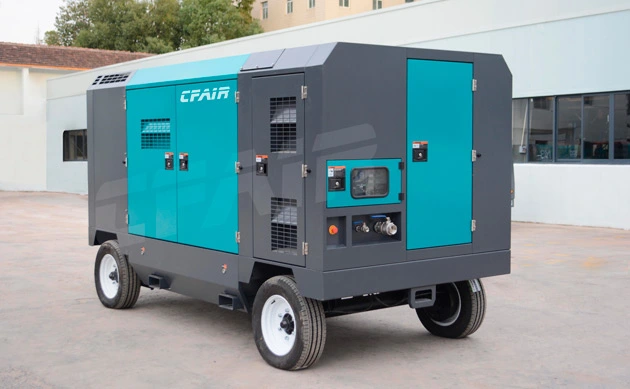

CF750MK-10.5 Towable Diesel Air Compressor 750CFM 10.5 Bar

CFAIR towable diesel driven compressor, a rotary compressor manufacturer, dedicated on providing pro-environment reliable and portable diesel driven compressors to global customers. CF750MK-10.5, air flow is 750CFM and working pressure is 10.5 bar. Widely applied in general and civil construction, also sandblasting applications. CFAIR advantage is advanced technology, reliable quality, best after-sales serivce, high efficiency, low fuel consumption.

  • Model: CF750MK-10.5

  • Pull behind diesel driven compressor

  • Air delivery: 21.1m³/min | 750 CFM

  • Pressure: 10.5 Bar | 152.5 PSI

  • Compressor diesel engine: CUMMINS


Features of CF750MK-10.5 Towable Diesel-driven Compressor 750CFM 10.5Bar

1) A remarkable compression ratio achieved by the GHH Screw Air end, resulting in significant energy savings.;

2)CUMMINS engines contribute to improving people's lives by driving towards a more prosperous world.;

3)The pressure control adopts the pneumatic control component, the power saving capacity adjustment, 0% ~ 100% load control, can adjust the power consumption automatically with the actual use of the amount;

4)An air filter and intake system with exceptional efficiency and performance.

5)The use of safe and reliable, with explosion-proof, overload, short circuit, phase break, leakage, anti self starting protection, but also with over temperature automatic shutdown protection and capacity adjustment, pressure valve, safety valve three protection, to prevent diesel driven compressor overpressure operation;

6)The use of safe and reliable, with explosion-proof, overload, short circuit, phase break, leakage, anti self starting protection, but also with over temperature automatic shutdown protection and capacity adjustment, pressure valve, safety valve three protection, to prevent diesel driven compressor overpressure operation;

7) Tried and tested airend:   Designed and made

8) Alternative Colors

Blue-Equivalent RAL5017

Green-Equivalent RAL6024

Red-Equivalent RAL3020

Orange-Equivalent RAL2009

Other color available as customer request.

9) Efficiency – a question of quality: We can offer constantly high free air delivery at astonishingly low power consumption. This, together with the perfected oil separation system, results in an exemplary efficiency yield.


Specs of CF750MK-10.5 Towable Diesel-driven Compressor 750CFM 10.5Bar

MODEL
CF750MK-10.5
Air End Type
Rotary Twin Screw, Single stage
Air Outlets
3/4'' x 1 + 2'' x 1
Free Air DeliveryCFM (mm³/min)750 (21.1)
Working Pressurebar (psi)10.5 (152.3)
Engine Model
CUMMINS
Fuel
Diesel
Emission
China Stage II
Engine Type
6 cylinder, Direct-injection
DisplacementL8.3
L X W X Hmm4115*1750*2360
Weightkg3400

Note: Please feel free to contact us if any more customized requirements!

Application of CF750MK-10.5 Towable Diesel-driven Compressor 750CFM 10.5Bar

High pressure diesel driven compressors is widely used in sandblasting, mining & quarrying applications. While during geological exploration, surface and underground mining and process, refining, and filter presses, customers need a reliable and quality diesel driven compressor to finish the tough tasks..
