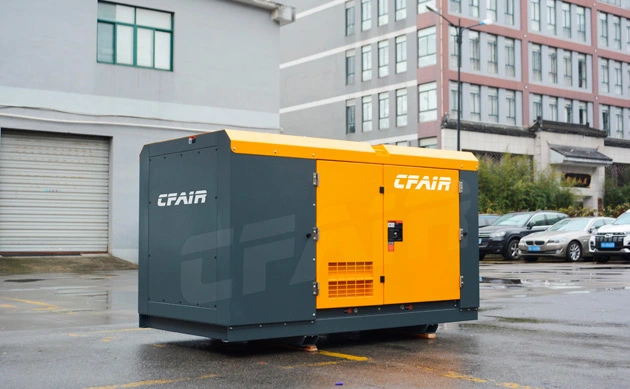

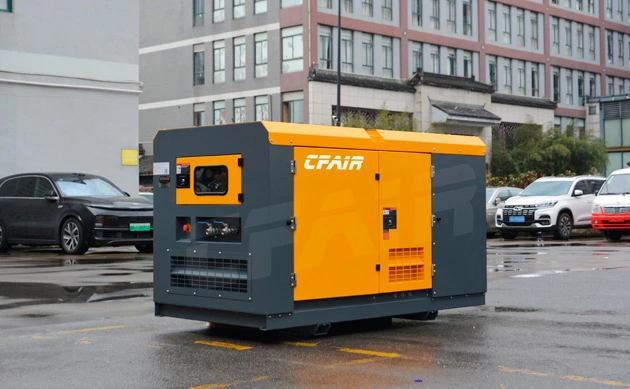

CF275BCI-7 Portable Diesel Compressor with Aftercooler

Engineered in box-type design, CF275BCI-7, portable diesel compressor can offer air delivery of 7.7 m³/min (275 CFM) at 7 Bar (101.5 PSI). Driven by ISUZU diesel engine and featuring an aftercooler, it ensures optimal performance across a spectrum of construction tasks. Crafted for durability, mobility, and top-tier functionality, it stands as a reliable companion in the dynamic realm of construction projects.

  • Model: CF275BCI-7

  • Portable diesel compressor:Box type with aftercooler function

  • Air delivery: 7.7 m³/min | 275 CFM

  • Pressure: 7 Bar | 101.5 PSI

  • Compressor diesel engine: ISUZU

Features of CF275BCI-7 Portable Diesel Compressor with Aftercooler

1)Axle: This part connecting compressor to the ground, including suspension system, wheels and all related parts. Suspensions can be assured with springs (sprung axle) or leaf springs (leaf spring axle). Wheels are of different size, to match the weight of the machine and according to the type of towing.

2) Lights: System with rear lights and reflectors

3)Drawbar: The drawbar is the rigid connection between diesel powered air compressor and towing vehicle. It can be at fixed height (gooseneck bend or straight angles) or adjustable through joints.

4)Connection: This is the mean to connect physically the drawbar to the towing vehicle. It can be through tow eyes or ball concection, both of different diameter.

5) Low noise: Their enhanced safety features and very low noise levels make them the perfect choice for any jobsite.

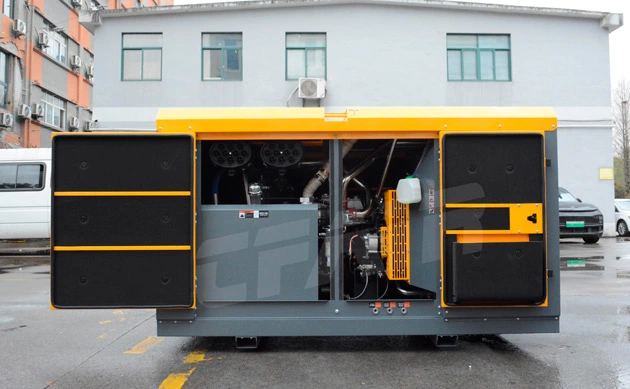

6)Easy Maintenance: Quick access air connections and large gullwing doors provide easy access for maintenance and servicing. Some models may have interior storage compartments for storing tools and accessories.

7)Colur: Customed

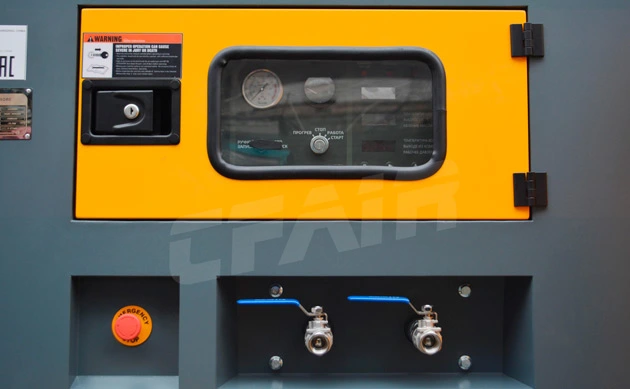

Exclusive pneumatic control system: developed by CFAIR, one of the leading diesel air compressor suppliers,  to adjust automatically engine rotation speed, depending on the air to be delivered.This system is highly reliable and ensures fuel consumption saving.

COMPRESSOR: Max operation pressure/Free Air Delivery/Minimum working pressure Drive system engine-airend Compressor cooling system Oil cooling capacity/Outlet valves/Noise level EECno 2000/14 Battery capacity/Fuel tank capacity

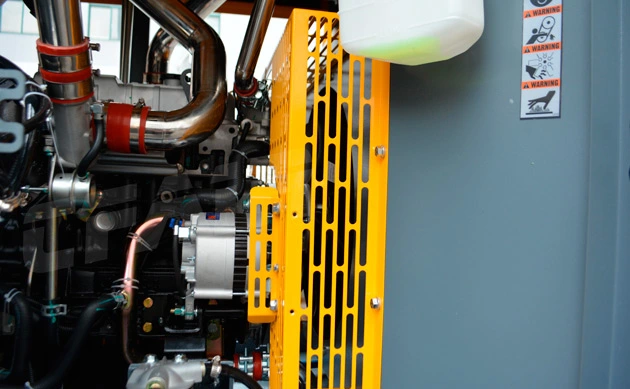

Diesel Engine:

1)The engine match selection for each compressor model is based on achieving optimum performance and reliability with the lowest possible fuel consumption.

2)Only premium quality engines are used including CUMMINS. All are backed up by their own worldwide parts and service networks.

3)Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.

4)Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.

Specs of CF275BCI-7 Portable Diesel Compressor with Aftercooler

Air End Type
Rotary Twin Screw, Single stage
Air Outlets
3/4'' x 2 + 1-1/4'' x 1
Free Air DeliveryCFM (mm³/min)275 (7.7)
Working Pressurebar (psi)7 (101.5)
Discharge Air Temperature°CAtmospheric Temperature +20°C
Engine Model
China Stage II
Engine Type
4 cylinder, Direct-injection, Turbocharged
L X W X Hmm2280*1125*1260

Note: Please feel free to contact us if any more customized requirements!

Application of CF275BCI-7 Portable Diesel Compressor with Aftercooler

The CF275BCI-7's diesel powered air compressoradaptability makes it an invaluable asset across diverse industries, ensuring reliable compressed air for a wide range of applications.

  • Construction Sites: The construction air compressor is ideal for powering pneumatic tools, jackhammers, and drills in construction projects.

  • Road Repair and Maintenance: Provides a reliable air source for on-the-spot repairs and maintenance tasks.

  • Mobile Workshops: Perfect for mobile workshops, offering compressed air for various applications.
