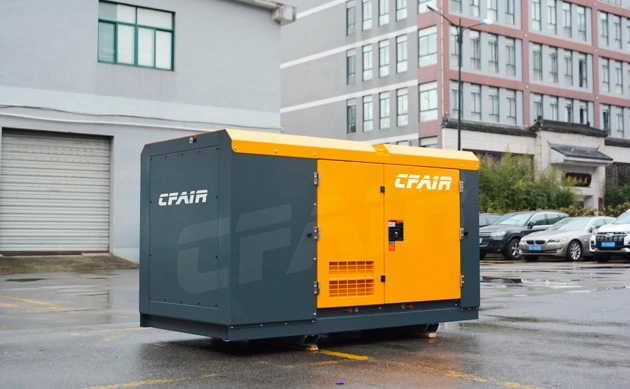

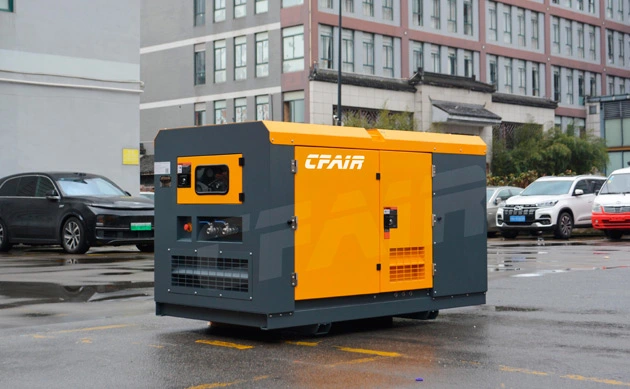

CF265BCI-7 Box Air Compressor 265CFM

Compact and efficient, the CF265BCI-7 is a portable diesel compressor in a box-type design, featuring aftercooler functionality. With an air delivery of 7.5 m³/min (265 CFM) and operating at 7 Bar (101.5 PSI) pressure, this compressor is powered by a reliable ISUZU diesel engine, ensuring optimal performance in various applications.

  • Model: CF265BCI-7

  • Portable diesel compressor: Box type with aftercooler function

  • Air delivery: 7.5 m³/min | 265 CFM

  • Pressure : 7 Bar | 101.5 PSI

  • Compressor diesel engine: ISUZU


Features of CF265BCI-7 Box Air Compressor 265CFM

1)Versatile: CFAIR portable compressors are available in a wide range of sizes and pressures and are suited for many applications including, but not limited to, sandblasting, pavement breaking, and general air tool use. Their extensive options allow customization to meet virtually any demand. Units are ideal for rental, general construction, and utility services

2) Easy to use: Our user interface is very simple.Mobile air compressors are simple to operate, provide excellent component accessibility, and are easy to maintain.

3)Low cost of ownership: Air end from our diesel air compressor factory is for longer life and better efficiency with 15-20% more air per gallon of fuel than our competition. Superb reliability and simple maintenance save time and money. Our Anti-frost Valve protects air tools from freezing when the ambient temperature drops, significantly increasing tool service life.

4) Low noise: Their enhanced safety features and very low noise levels make them the perfect choice for any jobsite.

5)Easy Maintenance: Quick access air connections and large gullwing doors provide easy access for maintenance and servicing. Some models may have interior storage compartments for storing tools and accessories.


Noise Control

• Super silent full load noise levels from as low as 64 dB(A) at 7 m.

• Low engine and air end speed design is intrinsically quieter.

• Steel body panels lined with sound absorbent material.

• Computer aided sound path analysis and attenuation design.


Environmental Protection

• Low fuel consumption ensures a reduced carbon footprint.

• Low exhaust emissions cause minimal harm to the atmosphere.

• Low noise levels protect ambient conditions and workers’ hearing.

• Almost 100% recyclable at end of service life to save the earth’s precious resources.

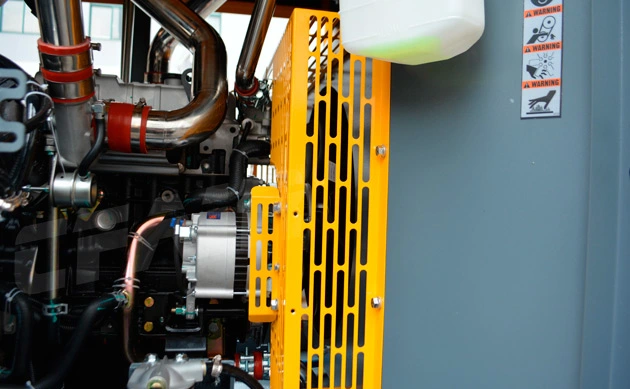

Diesel Engine

• The engine match selection for each compressor model is based on

achieving optimum performance and reliability with the lowest possible fuel consumption.

• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.

Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the air compressor oem runs out of fuel.

• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.


Specs of CF265BCI-7 Box Air Compressor 265CFM

MODEL
CF265BCI-7
Air End Type
Rotary Twin Screw, Single stage

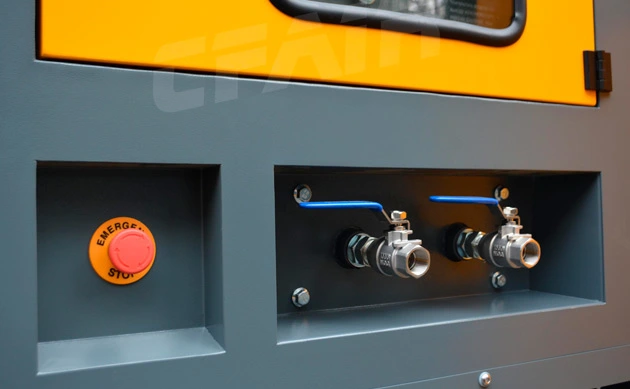

Air Outlets
3/4'' x 2 + 1-1/4'' x 1
Free Air DeliveryCFM (mm³/min)265 (7.5)
Working Pressurebar (psi)7 (101.5)
Discharge Air Temperature°CAtmospheric Temperature +20°C
Engine Model
ISUZU
Fuel
Diesel
Emission
China Stage II
Engine Type
4 cylinder, Direct-injection, Turbocharged
DisplacementL2.771
L X W X Hmm2280*1125*1260
Weightkg1100

Note: Please feel free to contact us if any more customized requirements!

Application of CF265BCI-7 Box Air Compressor 265CFM

The CF265BCI-7 construction air compressor is specifically tailored for construction sites, serving as a reliable power source for pneumatic tools and machinery. Its versatile applications include:

  • Pneumatic Tool Powerhouse:

Delivers a robust air supply of 265 CFM, making it an ideal power source for a variety of industrial pneumatic tools used in construction.

  • Concrete and Demolition Work:

Essential for tasks involving concrete work, demolition, and other construction activities where pneumatic tools are integral.

  • Jackhammer Operation:

Powers pneumatic air jack hammer efficiently, ensuring smooth and effective operation during excavation and foundation work.
