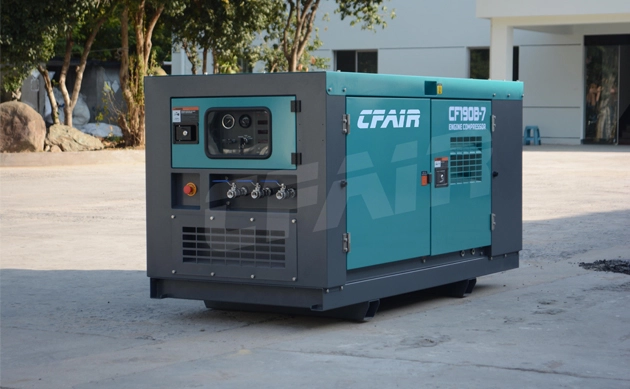

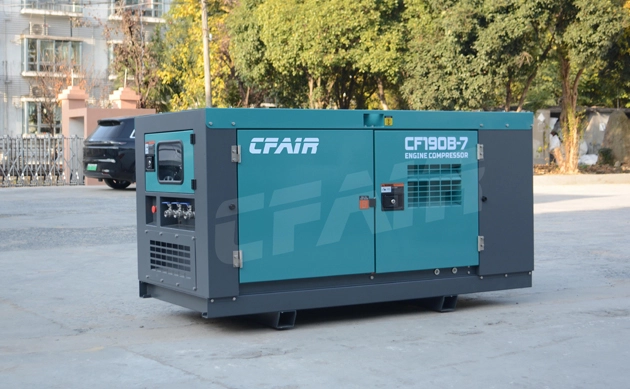

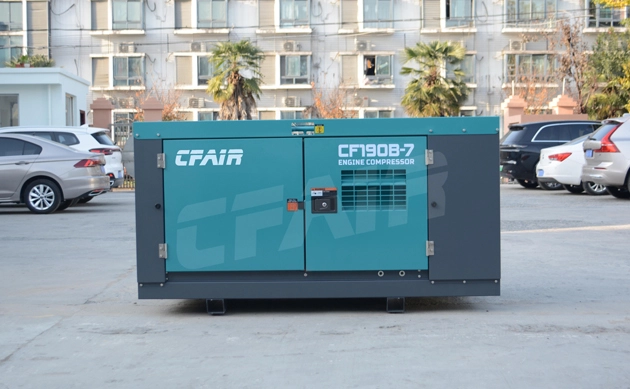

CFAIR 190cfm diesel compressor applicates famous compression element ensures the high performance and large air delivery. The components manufactured to the highest standards and precision aligned roller bearings ensure long service life with maximum reliability.
Reliable and efficient Air End: The sophisticated design of the air compressor head ensures unmatched reliability, maintaining consistent performance throughout prolonged operational periods. This minimizes downtime and interruptions in production, thereby maximizing efficiency.
Meticulous airend assembly: Our highly trained specialists meticulously assemble each airend in accordance with our rigorous ISO standards.
Oil Filter: Employing dependable filters guarantees a prolonged operational lifespan, ultimately resulting in decreased maintenance time and costs.
Air Filter: A two-stage dust elimination and filtration system boasting efficiency levels of up to 99.9%, even in challenging environments.
Highly-efficient power transmission: The high-quality drive belt, equipped with an automatic tensioning device, guarantees continuous transmission efficiency and exceptional reliability of the drive system throughout its entire lifespan.

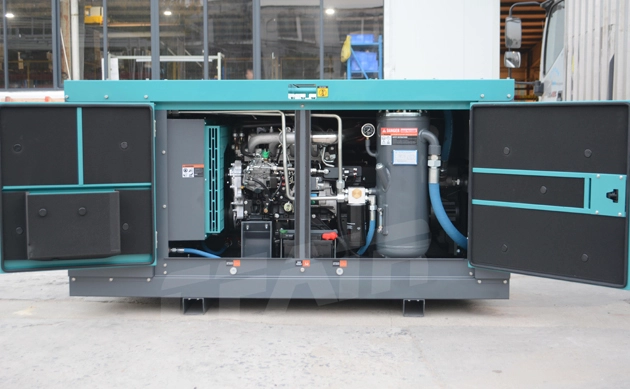

Easy maintenance: The enclosure facilitates effortless access, with components logically organized and readily reachable, streamlining maintenance tasks for swift and straightforward handling.
Exceptionally quiet: The sound-insulated enclosure minimizes operational noise to an extent where normal conversations can occur adjacent to the diesel air compressor without disturbance.
Precision control: Sophisticated air compressor heads can feature precision control systems, enabling accurate monitoring and adjustment of pressure, temperature, and other variables to ensure the stability and manageability of the production process.
Disel Engine
1)High efficiency: ISUZU diesel engine uses supercharging technology to improve combustion efficiency by compressing air, thereby providing higher power output and better fuel economy.
2)Reliability: ISUZU is a reputable engine manufacturer whose engines are known for their exceptional reliability. Supercharged diesel engines are engineered and tested for exceptional durability and stability, delivering reliable performance in a variety of operating conditions.
3)Energy Saving and Environmental Protection: Supercharged diesel engines generally provide higher combustion efficiency, thereby reducing fuel consumption and emissions. This helps reduce operating costs and comply with modern environmental standards and regulations.
4)Power output: Supercharging technology can improve the power output of diesel engines, allowing them to maintain high torque output under high loads and low speeds, making it suitable for various industrial and commercial applications.
5)Convenient maintenance:The ISUZU engine has a simple design, reasonable layout of parts, and relatively easy maintenance and upkeep. The maintenance manual and technical support provided by the original factory allow users to easily perform routine maintenance and troubleshooting, reducing downtime and extending equipment life.
| MODEL | CF190BI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 3 | |
| Free Air Delivery | CFM (mm³/min) | 190 (5.4) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 2100*980*1100 |
| Weight | kg | 930 |
Note: Please feel free to contact us if any more customized requirements!
CFAIR 190cfm air compressor OEM is a popular model and well applicated in many situations.
Breaking concrete and asphalt with heavy demolition hammers.
For use with clay spaders. Connect the air hose to the air compressor and the clay spader. Make sure the hose is long enough to reach the work area and that the connections are secure and leak-free
Rock drills &. Rock drills can be powered by compressed air used to drill holes in rocks for various purposes, such as mining, quarrying, construction, exploration, and geotechnical engineering
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
