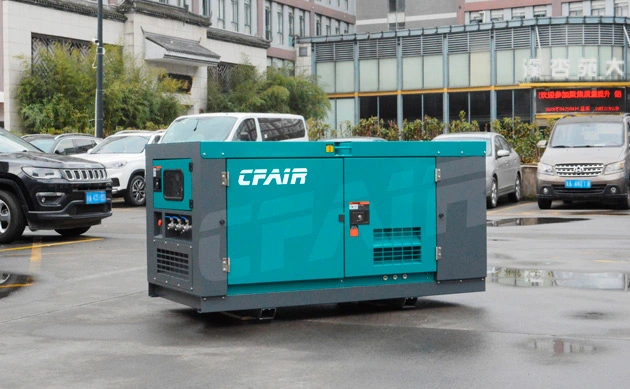

The CF185BCI-7 is a skid-mounted, box-type air compressor designed for efficient performance. Delivering an air output of 5.2 m³/min (185 CFM) at a working pressure of 7 bar (101.5 PSI), the 185 CFM skid-mounted air compressor meets the demands of a wide range of industrial and construction applications. Powered by a durable ISUZU diesel engine, this factory-direct 185 CFM skid-mounted air compressor combines strong performance with fuel efficiency. Manufactured by CFAIR, a professional factory with ISO-certified quality assurance, the 185 CFM skid-mounted air compressor ensures dependable operation and long service life.
Model: CF185BCI-7
Portable diesel skid-mounted compressor: Box type with aftercooler function
Air delivery: 5.2 m³/min | 185 CFM
Pressure: 7 Bar | 101.5 PSI
Compressor diesel engine: ISUZU
1）Wide range of pressures, with dual pressure option.
2）Compact, ergonomic, durable machines.
3）Lowest acoustic pressure levels as indicated in current legislation provisions.
4）Emissions according to the latest parameters
5）Accessibility for maintenance.
6）Intelligent System – avoids starting the load on the engine and ensures low-pressure shutdown.
7）Anti-repetitiveness system on the engine start.Avoids starter motor issues and improves starter motor life.
8）Centralized control panel for easy monitoring. Low life cost.
9）Manufactured in compliance with applicable international standards
10）Skid, axles of different types, with or without brakes, lights to be fit for road circulation
Our 185 CFM skid-mounted air compressors provide you with:
• Long Runtimes: With improved fuel efficiency for up to 10 hours of runtime, there’s no need to stop midday to refuel.
• Famous Air End: At the heart of the 185 CFM skid-mounted air compressor is an air end supported by German technology, continuing the tradition of reliable durability. The design method of our skid-mounted compressor head is processed using a high-precision CNC center. At the same time, we use an advanced three-dimensional coordinate system to conduct quality inspection on our 185 CFM skid-mounted air compressors.
• Easy Maneuverability: Our 185 CFM skid-mounted air compressors feature a compact design for easier maneuverability, whether on the jobsite or behind a truck.

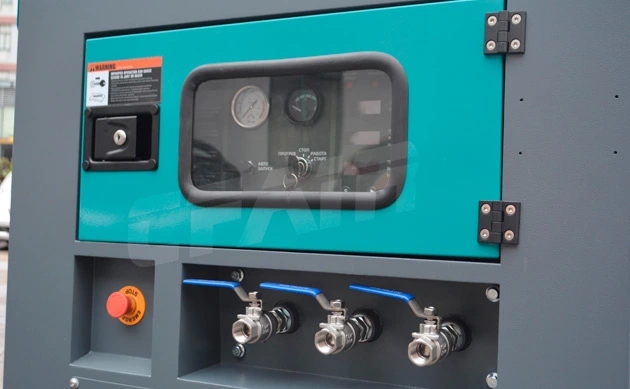

• An Easy Controller: Our controller, which is on the curbside to help keep the operator safe, quickly and easily understands the status of the 185 CFM skid-mounted air compressor, day in and day out.
• Noise Reduction: Certain models may incorporate sound attenuation technology, such as QuieTech, to minimize noise levels during operation.
Noise Control
• Steel body panels lined with sound-absorbent material.
• Computer-aided sound path analysis and attenuation design.
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at the end of service life to save the earth’s precious resources.

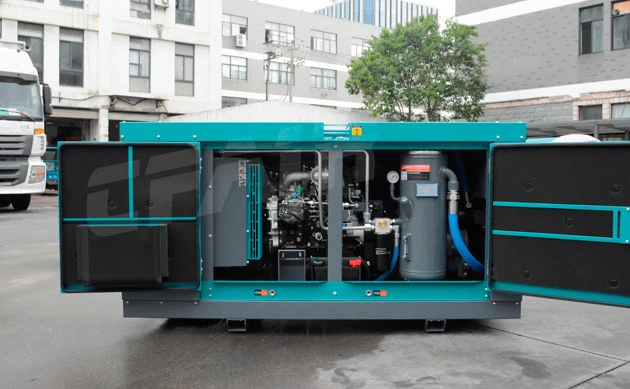

Diesel Engine
• The engine match selection for each skid-mounted compressor model is based on achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
• Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the diesel powered air compressor for sale runs out of fuel.
• Two-stage fuel filtration via water sediment and high capacity pleated filter element.
| MODEL | CF185BCI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 3 | |
| Free Air Delivery | CFM (m³/min) | 185 (5.2) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Discharge Air Temperature | °C | Atmospheric Temperature +20°C |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 2100*980*1100 |
| Weight | kg | 930 |
Note: Please feel free to contact us if any more customized requirements!
The CF185BCI-7 185 CFM skid-mounted air compressor with an ISUZU engine and box-type design is well-suited for various applications, including:
Construction Sites: The air compressor for construction site powers pneumatic air tools and other on-site machinery, ensuring smooth operation on the job.
Industrial Projects: The 185 CFM skid-mounted air compressor provides consistent and efficient compressed air for various industrial processes, enhancing productivity and equipment performance.
Mobile Repairs: Designed for mobility, this 185 CFM skid-mounted air compressor offers a convenient on-the-go solution for field maintenance and emergency repairs.
Emergency Situations: With rapid start-up and stable output, the CF185BCI-7 185 CFM skid-mounted air compressor ensures a reliable air supply when and where it’s needed most.
Versatile On-the-Go Use: Its compact and durable structure makes the 185 CFM skid-mounted air compressor ideal for different working conditions, from remote construction sites to demanding industrial settings.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
