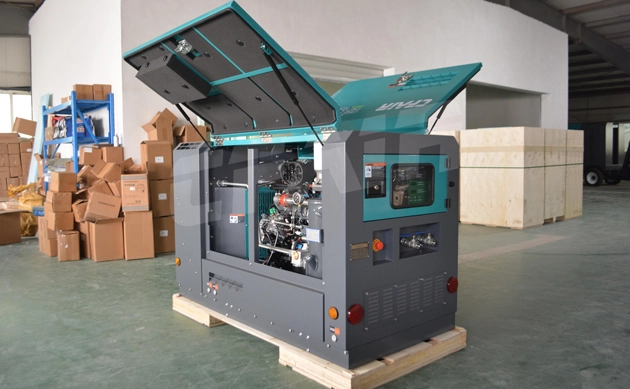

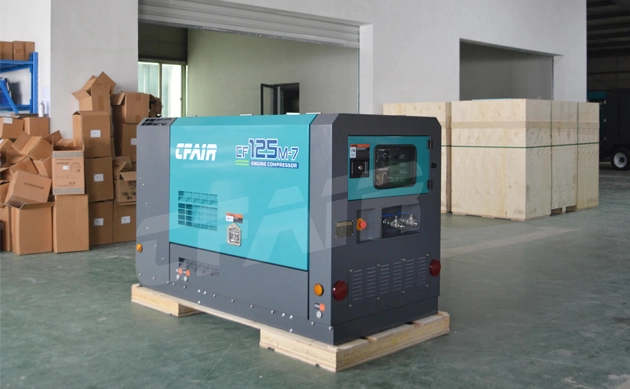

CFAIR 120 cfm box air compressor is a device that can deliver 120 cubic feet of air per minute at a certain pressure which is 7bar. Equipped with ISUZU engine and its fuel consumption is 6.1L.

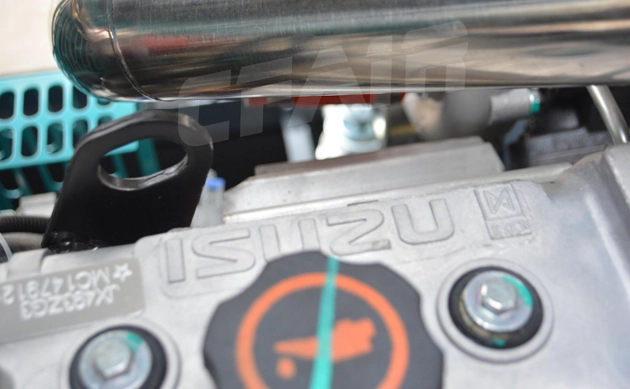

1）Reliable and high performance ISUZU engine.
2）Legendary canopy
3）Starter motor protection system
4）Spillage free frame
5）Three layer anti-corrosion paint system
6）Battery cut off switch
7) Extra protection for encased wire routings
Control System: Integrated starting unloader control for initial engine warm-up.
Inspection and Maintenance: Every machine been carefully inspected by team professional engineers before leaves diesel air compressor factory. We insists on proven manufacturing techniques, complete loading tests prior shipment, and outstanding after sales service.
Diesel Engine
• The engine match selection for each compressor model is based on
achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
| MODEL | CF120BI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 2 | |
| Free Air Delivery | CFM (mm³/min) | 120 (3.4) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 1880*915*1220 |
| Weight | kg | 860 |
Note: Please feel free to contact us if any more customized requirements!
CFAIR 120cfm box air compressor is widely used in mining industry. In the process of ore flotation, the useful minerals in the ore are raised together with the foam through the mixture of air and chemicals to realize the separation of minerals. The air is provided by the air compressor, so the CFAIR diesel powered air compressor for sale plays an important role in the ore flotation process. In addition, there are some other processes in the beneficiation process that need to use air compressors, such as pneumatic conveying, pneumatic mixing and so on.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
