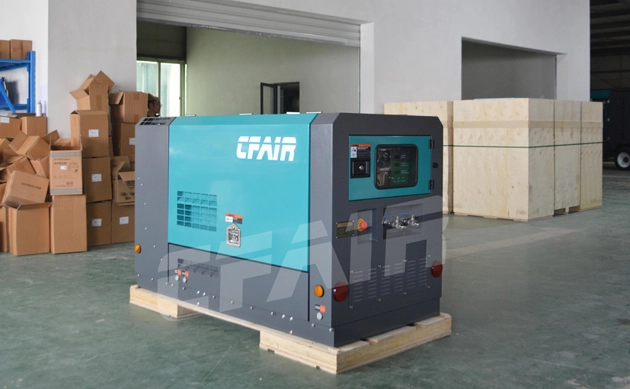

CF100BI-7 CFAIR 100 CFM Diesel Engine Box Type Air Compressor

CFAIR 100cfm at 7bar has been designed to enhance safety in workplaces with safety a key consideration in its design, with a user-friendly control panel and easy maintenance with ample service doors. Powered by a ISUZU diesel engine, it is sure to give you enough air power to finish even the toughest of jobs.

Features of CF100BI-7 CFAIR 100CFM Diesel Engine Box Type Air Compressor

Reliable Air Compressors: CFAIR air compressors made using 100 cfm diesel air compressor and provide excellent reliability. They can satisfy needs consumers with regards to reliability. The quality of air compressor will provide long service life can be great way protect the interests customers.

Efficient Air Compressors: CFAIR air compressors feature advanced technology, and highly 100 cfm diesel air compressor meet the demands of customers high-efficiency. The air compressor's efficiency can as high as 90 percent! This can effectively save energy and reduce operating costs.

Inspection and Maintenance: Every machine been carefully inspected by team professional engineers before leaves diesel air compressor factory. We insists on proven manufacturing techniques, complete loading tests prior shipment, and outstanding after sales service.


Operator Interface:

• Removable starter key to prevent unauthorised operation.

• Comprehensive analogue and digital instruments supplemented by status and warning lights.


Control System

• Integrated starting unloader control for initial engine warm-up.

• Automatic zero to 100% capacity control by means of engine speed regulation and the type of 80 100 cfm air compressor inlet valve modulation.

• Shutdown protection for critical parameters including engine oil pressure, engine coolant temperature and compressor discharge air temperature.


Noise Control

• Super silent full load noise levels from as low as 64 dB(A) at 7 m.

• Low engine and air end speed design is intrinsically quieter.

• Steel body panels lined with sound absorbent material.

• Computer aided sound path analysis and attenuation design.


Environmental Protection

• Low fuel consumption ensures a reduced carbon footprint.

• Low exhaust emissions cause minimal harm to the atmosphere.

• Low noise levels protect ambient conditions and workers’ hearing.

• Almost 100% recyclable at end of service life to save the earth’s precious resources.

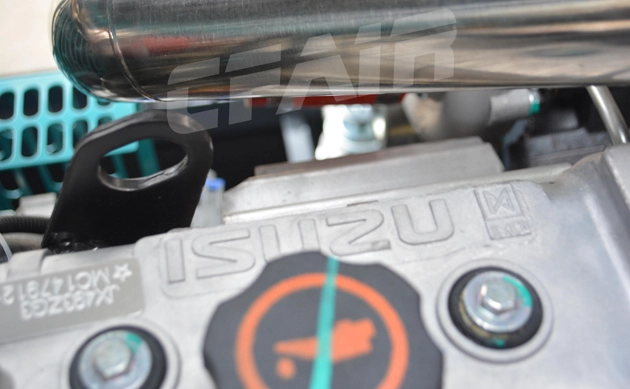

Diesel Engine

• The engine match selection for each compressor model is based on

achieving optimum performance and reliability with the lowest possible fuel consumption.

• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.

Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.

• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.


Specs of CF100BI-7 CFAIR 100CFM Diesel Engine Box Type Air Compressor

MODEL
CF100BI-7
Air End Type
Rotary Twin Screw, Single stage
Air Outlets
3/4'' x 2
Free Air DeliveryCFM (mm³/min)100 (2.8)
Working Pressurebar (psi)7 (101.5)
Engine Model
ISUZU
Fuel
Diesel
Emission
China Stage II
Engine Type
4 cylinder, Direct-injection
DisplacementL2.771
L X W X Hmm1880*915*1220
Weightkg860

Note: Please feel free to contact us if any more customized requirements!

Application of CF100BI-7 CFAIR 100CFM Diesel Engine Box Type Air Compressor

The CFAIR diesel powered air compressor will be applicated in mining, hydropower, oil and gas exploitation, borehole, shipyard. CFAIR mobile air compressors are equipped with low-temperature and high-altitude starter kits, and large-volume diesel tanks can satisfy satisfactory solutions such as long-term uninterrupted operation. Simple equipment operation and convenient maintenance also ensure maximum working hours.
