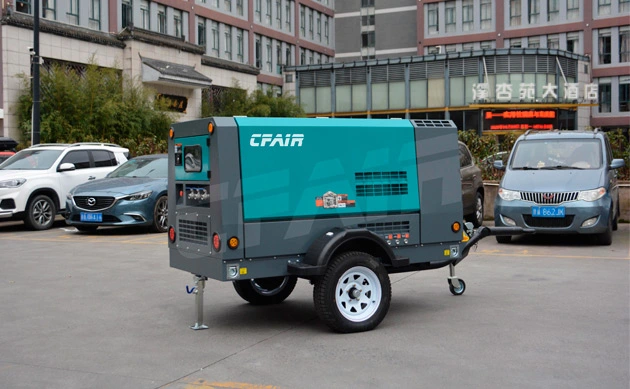

185cfm tow behind air compressor, CF185MI-8 from CFAIR, is featuring ISUZU turbocharging for enhanced performance. The compact and efficient CF185MI-8 diesel compressor is ideal for construction and industrial use, this tow behind air compressor ensures reliable power in diverse settings.
Model: CF185MI-8
Pull behind compressor
Air delivery: 5.2 m³/min | 185 CFM
Pressure: 8 Bar | 116 PSI
Compressor diesel engine: ISUZU TURBO-CHARGED
1)Economical, reliable and robust diesel engine for approximately 10% less fuel consumption in comparison to the predecessor model

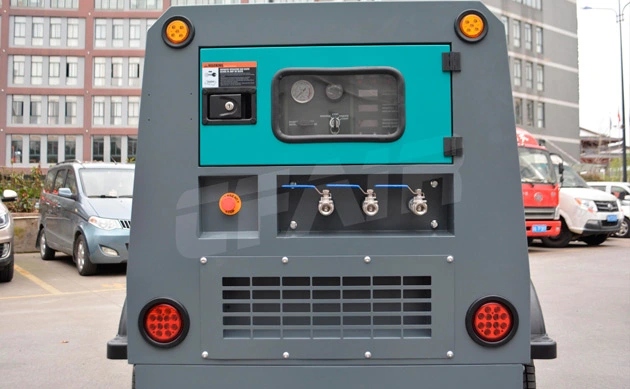

2)Easy, clear operation for constant information about theoperating state
Air and fuel filter, water separator as well as control valves ensure smooth operation and increase the service life.
3)The construction compressor is an important machine on site. Ideally it will also supply electricity for light and other electrical equipment, as well as compressed air.
Easy Maintenance: Quick access air connections and large gullwing doors provide easy access for maintenance and servicing. Some models may have interior storage compartments for storing tools and accessories.
Construction and Durability: The compressors are typically built with heavy-duty steel frames and powder-coated steel construction for durability and longevity. They may have corrosion-proof air intakes and watertight door seals to protect against harsh environments.
Noise Control
• Super silent full load noise levels from as low as 64 dB(A) at 7 m.
• Low engine and air end speed design is intrinsically quieter.
• Steel body panels lined with sound absorbent material.
• Computer aided sound path analysis and attenuation design.
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.
Diesel Engine
• The engine match selection for each compressor model is based on
achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
| MODEL | CF185MI-8 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 3 | |
| Free Air Delivery | CFM (mm³/min) | 185 (5.2) |
| Working Pressure | bar (psi) | 8 (116.0) |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection, Turbocharged | |
| Displacement | L | 2.771 |
| L X W X H | mm | 3375*1610*1600 |
| Weight | kg | 1030 |
Note: Please feel free to contact us if any more customized requirements!
From construction sites to industrial facilities, 185 cfm tow behind air compressor is extremely the popular choice in the market. Model CF185MI-8 excels in powering pneumatic tools, sandblasting, and other compressed air applications. Its compact size and ISUZU turbocharged engine make it a reliable choice for on-the-go operations.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
