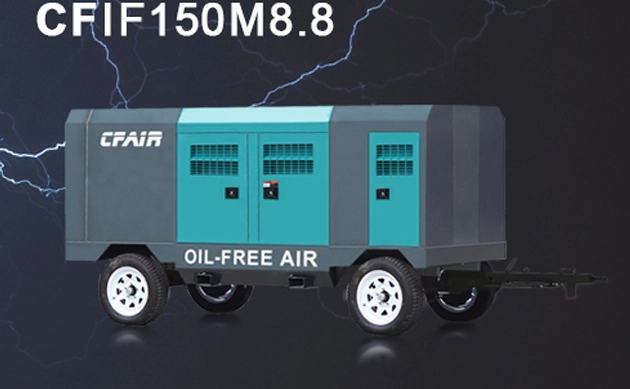

CFOF150M-8.8 150 CFM OIL FREE Diesel Compressor Portable Type with EPA T4F/EV Stage V Emission Standard

The CFAIR CFOF150M-8.8 Tier 4 FINAL Oil-free diesel compressors ensure the delivery of clean, high-quality compressed air, ideal for applications like pharmaceuticals, food processing, and electronics manufacturing. By eliminating the risk of oil contamination, these 150 cfm compressors contribute to product integrity and operational efficiency. They are designed to meet stringent industry standards, providing reliable and environmentally friendly solutions. With their versatility and performance, oil-free diesel 150 cfm compressors play a pivotal role in maintaining the purity of compressed air for critical processes across diverse sectors.

Features of CFOF150M-8.8 150CFM OIL FREE Diesel Compressor Portable Type with EPA T4F/EV Stage V Emission Standard

1)Robust Long-Life Airend Design:

2)Precision machined gears

3)Oversized bearings

4)Stainless steel air seals

5)Unique labyrinth oil seal design

6)Stainless steel 2nd stage rotors

7)Stainless steel, aluminium and treated piping on critical components


Highest productivity:

1)Oil Free Class 0 certified air delivered for the most demanding industries

2)Intuitive Controller with extensive events history and advanced connectivity


Maximum reliability:

1)Good treatment of rotors and internalparts of compression chamber to avoid corrosion

2)Stainless Steel robust piping design on the cold side

3)Efficient inlet air filter for the best care of the air compressed path


Inspection and Maintenance Provisions

• Fluid drains are fitted with valves and piped to the outside of the unit.

• Selected models have external air-oil separator elements.

• Dual element air filters prevent dust ingress during replacement.

• Side hinged doors open out wide to 180 degrees.

• Top hinged doors with gas struts open up high for ample headroom.

• Side-by-side radiator and oil cooler are easier to clean.

• Safety guard fitted around engine cooling fan and V-belts.


Noise Control

• Super silent full load noise levels from as low as 64 dB(A) at 7 m.

• Low engine and air end speed design is intrinsically quieter.

• Steel body panels lined with sound absorbent material.

• Computer aided sound path analysis and attenuation design.


Environmental Protection

• Low fuel consumption ensures a reduced carbon footprint.

• Low exhaust emissions cause minimal harm to the atmosphere.

• Low noise levels protect ambient conditions and workers’ hearing.

• Almost 100% recyclable at end of service life to save the earth’s precious resources.


Diesel Engine feature:

1)The choice of engine for each 150 cfm compressor model is made to ensure optimal performance and reliability while minimizing fuel consumption.

2) This 150 cfm compressor boasts industry-leading levels of low fuel consumption, exhaust emissions, and noise.

An automatic fuel priming and air bleed system negates the necessity of opening injector lines in the event of fuel depletion.

3)Additionally, the 150 cfm compressor incorporates a two-stage fuel filtration system comprising a water sedimenter and a high-capacity pleated filter element.

Specs of CFOF150M-8.8 150CFM OIL FREE Diesel Compressor Portable Type with EPA T4F/EV Stage V Emission Standard

MODEL
CFOF150MK-8.8
Air End Type
Rotary Twin Screw, Oil-Free
Air Outlets
3/4'' x 2
Free Air DeliveryCFM (mm³/min)150 (4.2)
Working Pressurebar (psi)8.8 (127.6)
Engine Model
CUMMINS
Fuel
Diesel
Emission
EU Stage V / EPA T4F
Engine Type
4 cylinder, Direct-injection
DisplacementL2.8
L X W X Hmm4872*2100*2440
Weightkg3600

Note: Please feel free to contact us if any more customized requirements!

Application of CFOF150M-8.8 150CFM OIL FREE Diesel Compressor Portable Type with EPA T4F/EV Stage V Emission Standard

The CFAIR 150 cfm compressor is built for long-lasting performance and brings Class 0 Oil Free Air directly where it is needed — plantside, refineryside — and jobsite!

Featuring a reliable diesel engine, these 150 cfm compressors for rent provide versatile operation — even in environmentally sensitive applications.
