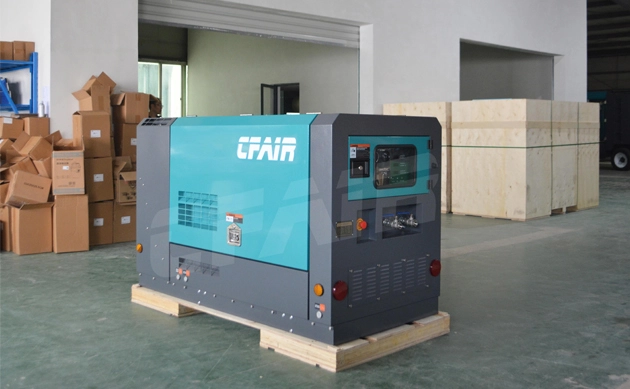

CF130BI-7 Silent 130 CFM Rotary Screw CFAIR Compressor with Diesel Engine 7 Bar

Powered by ISUZU engine, the CFAIR 130CFM at 7bar compressor will provide a reliable source of compressed air to drive various pneumatic tools, including chipping and jackhammers, nut runners, grinders and hammers.

Features of CF130BI-7 Silent 130 CFM Rotary Screw CFAIR Compressor with Diesel Engine 7bar

1)Reliable and high performance ISUZU engine.

2)Modern, energy-efficient air-end.The air-end has a contemporary energy-efficient screw shape.This increases compressor efficiency andreduces maintenance and replacementcosts.

3)Through intelligent design of all key components, internal pressure losses are kept to a minimum, resulting innoticeable savings in total energy consumption.

4)Using of an effective oil separation system.

5)All filters and separators are easy to reach for economical service.

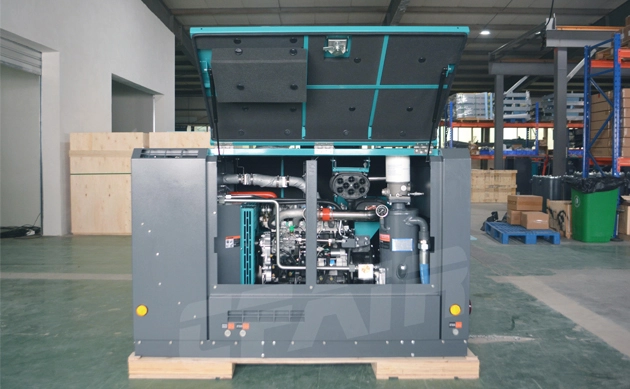

6) 2-position gas springs allow the canopy to open to one position for routine checks, inspection, and service, and a full-open position for access to all components for more involved service and maintenance.

7) Control System: Integrated starting unloader control for initial engine warm-up.

8) Inspection and Maintenance: Every machine has been carefully inspected by team professional engineers before leaves diesel air compressor factory. We insists on proven manufacturing techniques, complete loading tests prior shipment, and outstanding after sales service.


Diesel Engine

• The engine match selection for each compressor model is based on achieving optimum performance and reliability with the lowest possible fuel consumption.

• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.

Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.

• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.


Specs of CF130BI-7 Silent 130 CFM Rotary Screw CFAIR Compressor with Diesel Engine 7bar

MODEL
CF130BI-7
Air End Type
Rotary Twin Screw, Single stage
Air Outlets
3/4'' x 2
Free Air DeliveryCFM (mm³/min)130 (3.7)
Working Pressurebar (psi)7 (101.5)
Engine Model
ISUZU
Fuel
Diesel
Emission
China Stage II
Engine Type
4 cylinder, Direct-injection
DisplacementL2.771
L X W X Hmm1880*915*1220
Weightkg860

Note: Please feel free to contact us if any more customized requirements !

Application of CF130BI-7 Silent 130 CFM Rotary Screw CFAIR Compressor with Diesel Engine 7bar

CFAIR 130cfm box type air compressor can be used in Construction Sites. Powering pneumatic tools such as jackhammers, nail guns, and drills, and assisting in concrete pouring and spraying processes. In addition, mining operations are also available for this CFAIR air compressor for mining. Providing compressed air for drilling and excavation equipment, and supporting ventilation systems in underground mines. As for manufacturing and Industrial Facilities, diesel powered air compressor can be operating air-powered machinery and production lines.
