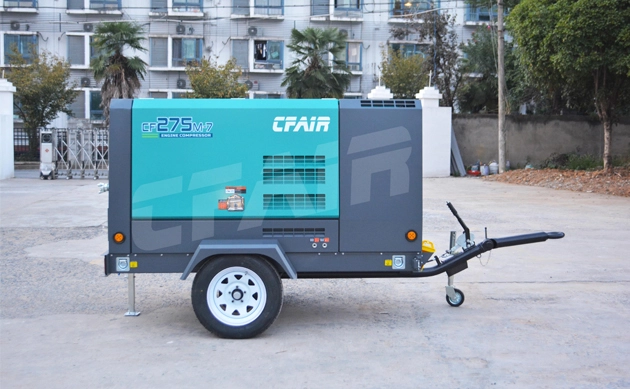

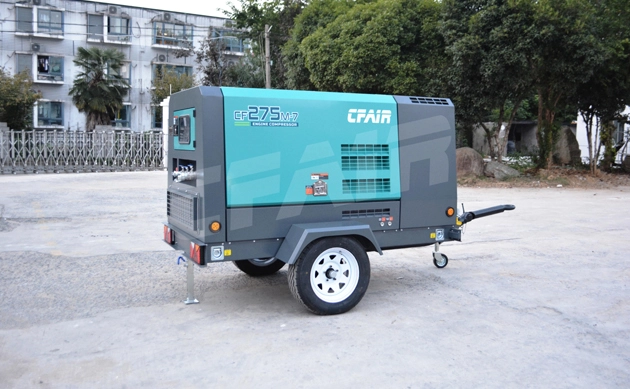

CFAIR 275cfm portable air compressor, single stage pressure, deliver 275cfm in 7bar air pressure. Equipped with ISUZU engine with 4cylinders and turbo charged model, very easy to transport by this portable type.
The exhaust volume is sufficient and air pressure is constant, 275cfm and 7bar.
Portable modle, easy to move.
Powerful engine helps to improve reliability and reduce fuel consumption.
SKF bearings for air end, long life time around 10 years.
Beautiful appearance, attracting clients.
1)Axle: This part connecting compressor to the ground, including suspension system, wheels and all related parts. Suspensions can be assured with springs (sprung axle) or leaf springs (leaf spring axle). Wheels are of different size, to match the weight of the machine and according to the type of towing.
2)Lights: System with rear lights and reflectors
3)Drawbar: The drawbar is the rigid connection between diesel powered air compressor and towing vehicle. It can be at fixed height (gooseneck bend or straight angles) or adjustable through joints.

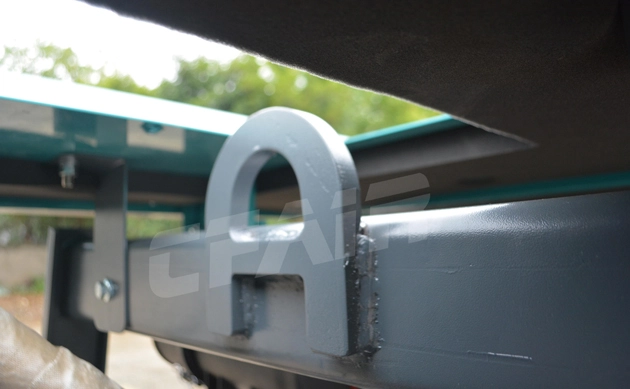

4)Connection: This is the mean to connect physically the drawbar to the towing vehicle. It can be through tow eyes or ball concection, both of different diameter.
5)Low noise: Their enhanced safety features and very low noise levels make them the perfect choice for any jobsite.

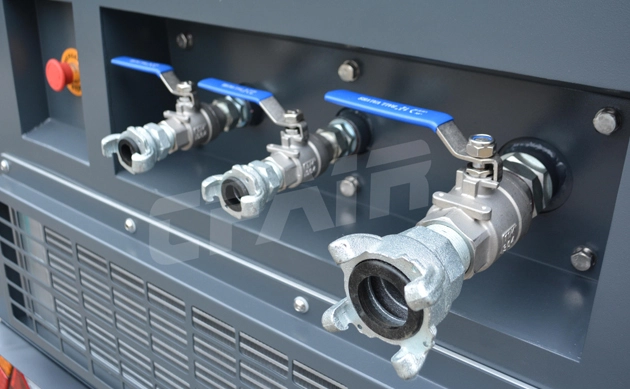

6)Easy Maintenance: Quick access air connections and large gullwing doors provide easy access for maintenance and servicing. Some portable air compressor China models may have interior storage compartments for storing tools and accessories.
7)Colur: Customed
Exclusive pneumatic control system: developed by CFAIR, to adjust automatically engine rotation speed, depending on the air to be delivered.This system is highly reliable and ensures fuel consumption saving.
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.
| MODEL | CF275MI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 2 + 1-1/4'' x 1 | |
| Free Air Delivery | CFM (mm³/min) | 275 (7.7) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection, Turbocharged | |
| Displacement | L | 2.771 |
| L X W X H | mm | 3630*1700*1770 |
| Weight | kg | 1380 |
Note: Please feel free to contact us if any more customized requirements!

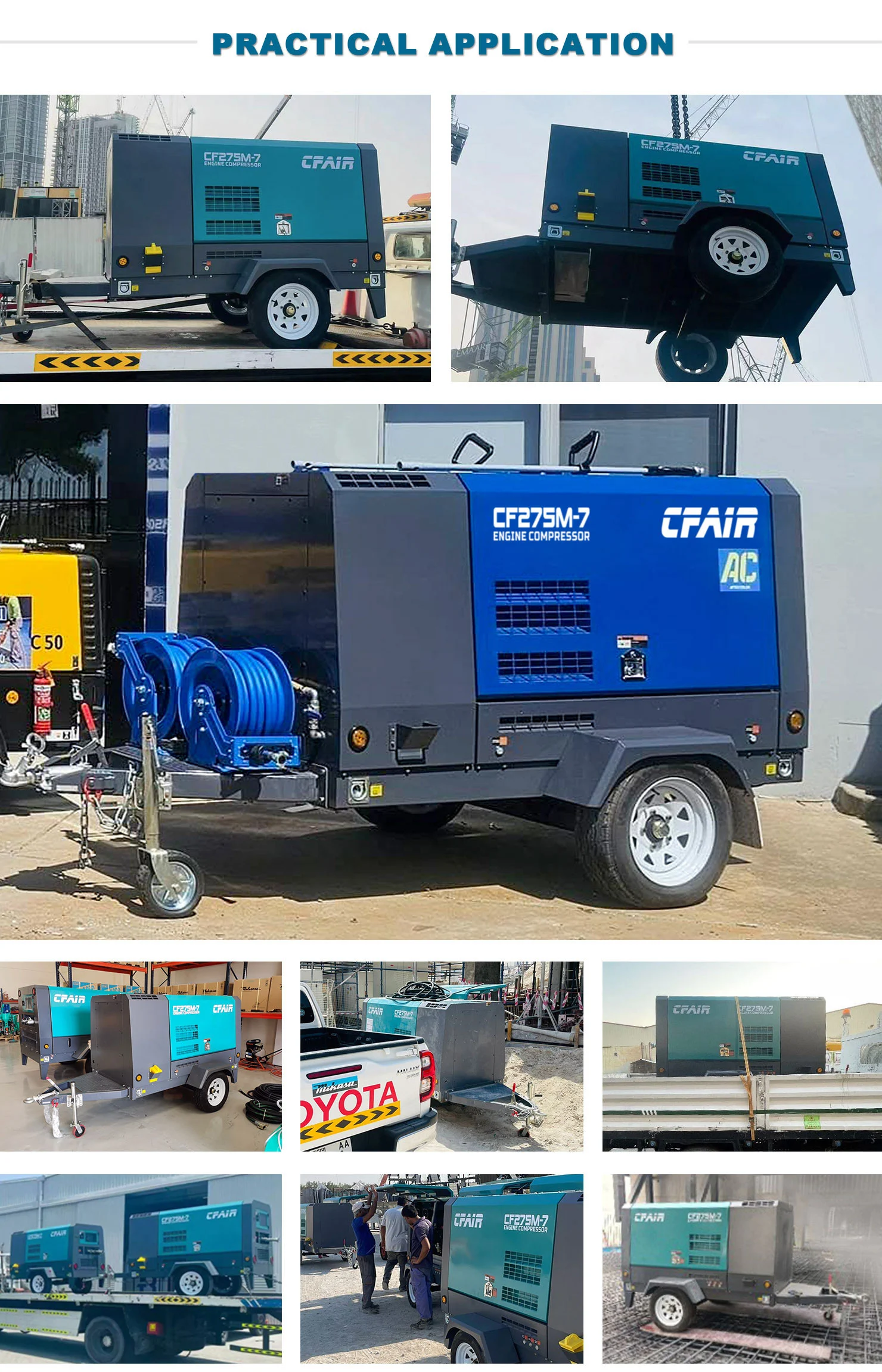

Construction works. The diesel air compressor for construction site fastens the process, brings efficiency in static pressure creation and ensures working under optimal pressure.
Energy & Mining. The mining industry uses controlled explosives to break up rocks and other strong materials. Compressed air by mining air compressor provides high-velocity streams that help set off explosives safely.
Manufacturing. Compressed air is an essential energy source, with up to 70% of industries using it for some aspect of their operations.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
