The CF100BR-7 by CFAIR, featuring a robust RAYWIN engine and EV emissions compliance, represents a high-performance and environmentally conscious box-type air compressor. Designed for versatility and durability, the 100 CFM air compressor with diesel excels in various applications across industries.
Reliable Air Compressors: CFAIR air compressors are manufactured utilizing 100 CFM diesel air compressor technology, ensuring outstanding reliability. They effectively meet consumers' reliability requirements. The high-quality construction of these air compressors ensures a long service life, serving as an excellent way to protect the interests of our customers.
Efficient Air Compressors: CFAIR air compressors incorporate cutting-edge technology, with highly efficient 100 CFM diesel air compressors meeting the demanding requirements of customers for high efficiency. The air compressor's efficiency can reach as high as 90 percent! This effectively saves energy and lowers operating costs..
Operator Interface: Panel operation is not only simple and convenient but also intuitive and user-friendly.
Inspection and Maintenance: Each machine undergoes meticulous inspection by a team of professional engineers before leaving the factory. We prioritize proven manufacturing techniques, conduct thorough loading tests prior to shipment, and provide exceptional after-sales service.
Control System
• Integrated starting unloader control to facilitate initial engine warm-up.
• Automatic control from zero to 100% capacity via engine speed regulation and modulation of compressor inlet valve.
• Shutdown protection for vital parameters such as engine oil pressure, engine coolant temperature, and compressor discharge air temperature.
High efficiency: It adopts Euro V emission standards and has advanced combustion technology and emission control systems to ensure high-efficiency operation of the engine and reduce fuel consumption and emissions.
Environmental protection and energy saving: It complies with Euro V emission standards, adopts advanced combustion control technology and energy-saving design, reduces tail gas emissions, reduces environmental pollution, and meets modern environmental protection requirements.
Noise Control
• Whisper-quiet operation with full load noise levels as low as 64 dB(A) at a distance of 7 meters.
• Engine and air end designed for reduced speed, inherently minimizing noise.
• Steel body panels with integrated sound-absorbing materials.
• Advanced computer-assisted analysis for sound path and noise reduction design.

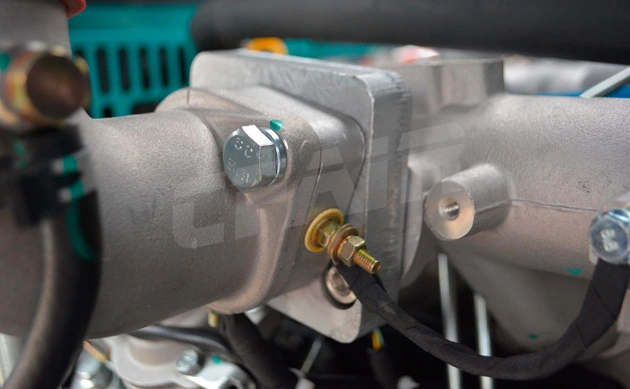

Diesel Engine
• Engine selection for each compressor model is carefully calibrated to ensure optimal performance and reliability while minimizing fuel consumption.
• Best-in-class fuel efficiency, as well as low exhaust and noise emissions, are key attributes.
• An automatic fuel priming and air bleeding system eliminates the necessity of opening injector lines in case the compressor exhausts its fuel.

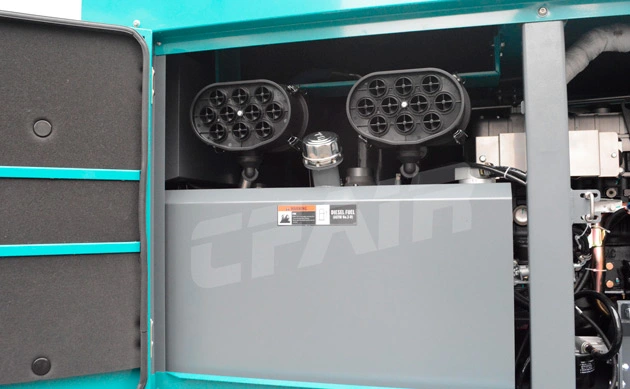

• Dual-stage fuel filtration is achieved through a water sediment separator and a high-capacity pleated filter element.
| MODEL | CF100BR-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |

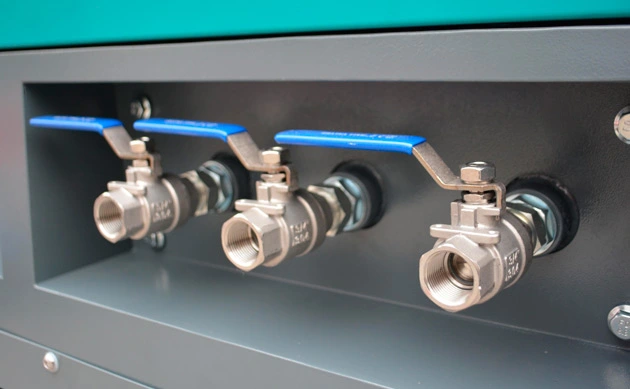

| Air Outlets | 3/4'' x 2 | |
| Free Air Delivery | CFM (mm³/min) | 100 (2.8) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | CHINA RAYWIN | |
| Fuel | Diesel | |
| Emission | EU Stage V | |
| Engine Type | 3 cylinder, Direct-injection | |
| Displacement | L | 1.07 |
| L X W X H | mm | 1880*915*1220 |
| Weight | kg | 860 |
Note: Please feel free to contact us if any more customized requirements!

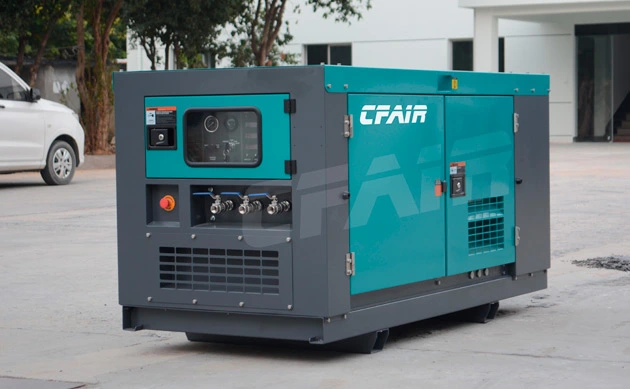

The CFAIR 7-bar box-type 100 CFM air compressor with diesel, powered by a robust RAYWIN engine, finds versatile applications across industries. Encased in its sturdy box design, this 100 CFM diesel engine driven air compressor excels on construction sites, driving pneumatic tools for drilling and fastening with efficiency. Its durable structure ensures reliability in manufacturing processes, supporting various pneumatic applications. The RAYWIN engine adds to its resilience and performance. Whether deployed in auto repair, remote locations, or emergency services, this air compressor on diesel engine offers a compact, powerful solution. Its mobility and efficient design make it indispensable, ensuring a steady and potent supply of compressed air for a spectrum of industrial tasks.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
