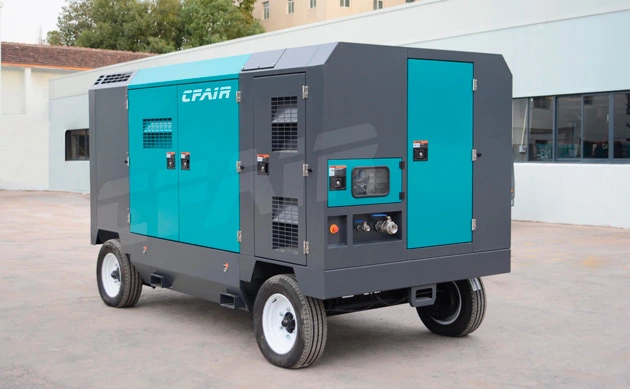

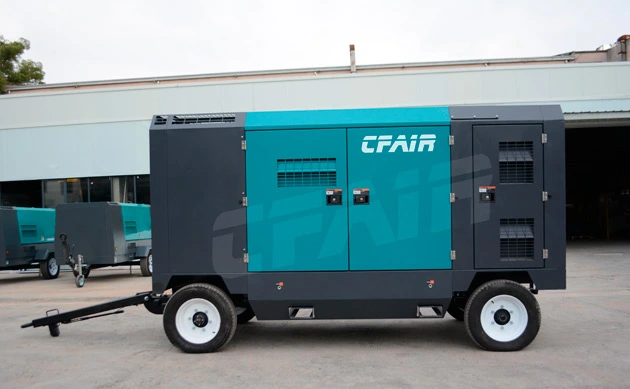

CF750MCK-10.5 Towable Diesel Air Compressor: A mobile powerhouse with a CUMMINS diesel engine, delivering 21.1 m³/min (750 CFM) at 10.5 Bar (152.5 PSI). Designed for versatility, its aftercooler function enhances efficiency, making it ideal for construction. Precision controls, reliability in motion, fuel efficiency, and safety features ensure optimal performance in diverse industrial environments.
Model: CF750MCK-10.5
Towable compressor with aftercooler
Air delivery: 21.1 m³/min | 750 CFM
Pressure : 10.5 Bar | 152.5 PSI
Compressor diesel engine: CUMMINS
Towable Design: Enables easy transportation between job sites, ensuring adaptability.
Aftercooler Function: Enhances efficiency by cooling compressed air, optimizing performance.
Precision Controls: The diesel powered air compressor is equipped with advanced instrumentation for monitoring and managing air delivery and pressure.
Fuel Efficiency: Designed to optimize fuel consumption, providing cost-effective operation.
Low Maintenance: Engineered for minimal maintenance requirements, ensuring long-term reliability.
Safety Features: Includes shutdown systems and safety measures for equipment and operator protection.
1)High-performance power: With its advanced technology and robust construction, this Cummins engine delivers exceptional power and reliability even in the harshest environments.
2) State-of-the-art Screw Element:
- Utilizes authentic GHH air end
- Advanced SAP profile design
- Constructed with specialty steel sourced from America for the rotors
- Equipped with premium element bearings from SKF in Sweden.
3)Excellent Accessibility Optimum Serviceability: Large enclosure doors provide excellent component accessibility for unrivalled ease of maintenance. Service and maintenance work can therefore be performed quickly and efficiently, which means maximum efficiency and compressed air availability；
4)Protective Air Filtration: Generously sized of heavy-duty intake filters protect motor and air end working condition from serious dust environment, and with maintenance indicators extend engine and compressorlife.Optimised design and separate air filters considerably enhance reliability and service life. The filters can be changed onsite quickly and simply as required.
5)Advanced fuel injection technology: Equipped with advanced fuel injection technology, this engine delivers precise and efficient fuel delivery, which translates into better performance and fuel efficiency
6) Low noise: Their enhanced safety features and very low noise levels make them the perfect choice for any jobsite.
7) Optimized Cooling System: (1) Large-diameter and low speed fan enhances large air flow,lownoise and good cooling performance. (2) Efficient cooling system is designed to be used in ambient temperature up to 52`C.Non-welded connection of oil cooler andengine radiator protects thermal stress damage and extends service life greatly.Surplus heat is 30% and cooling temperature difference is 8'C roughiy.Superiorty heat exchanging efficiency.
8) Alternative Colors：
Blue-Equivalent RAL5017
Green-Equivalent RAL6024
Red-Equivalent RAL3020
Orange-Equivalent RAL2009
Other color available as customer request
9) Exclusive pneumatic control system: developed by CFAIR, to adjust automatically engine rotation speed, depending on the air to be delivered. This system is highly reliable and ensures fuel consumption saving.
| MODEL | CF750MCK-10.5 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 1 + 2'' x 1 | |
| Free Air Delivery | CFM (mm³/min) | 750 (21.1) |
| Working Pressure | bar (psi) | 10.5 (152.3) |
| Discharge Air Temperature | °C | Atmospheric Temperature +20°C |
| Engine Model | CUMMINS | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 6 cylinder, Direct-injection | |
| Displacement | L | 8.3 |
| L X W X H | mm | 4115*1750*2360 |
| Weight | kg | 3400 |
Note: Please feel free to contact us if any more customized requirements!
The CF750MCK-10.5 Towable Diesel Air Compressor, with its powerful CUMMINS engine and versatile features, the applications across diverse industrial scenarios:
Construction Sites: The air compressor for construction site provides high-pressure air for pneumatic tools, such as jackhammers and drills.
Mining Activities: The mining air compressor assists in drilling, excavation, and other pneumatic tasks in mining operations.
Road Construction: Powers tools and equipment for tasks such as pavement breaking and drilling.
Utilities Maintenance: Supports maintenance tasks for pipelines, utilities, and infrastructure.
Oil and Gas Industry: Used in well drilling, pipeline maintenance, and exploration operations.
Infrastructure Development: Ideal for various construction and development projects requiring mobile compressed air.
Railway Maintenance: Supports maintenance tasks on railways, including track drilling and repair activities.
Versatile Industrial Use: Adaptable for tasks requiring reliable and high-pressure compressed air in diverse applications.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
