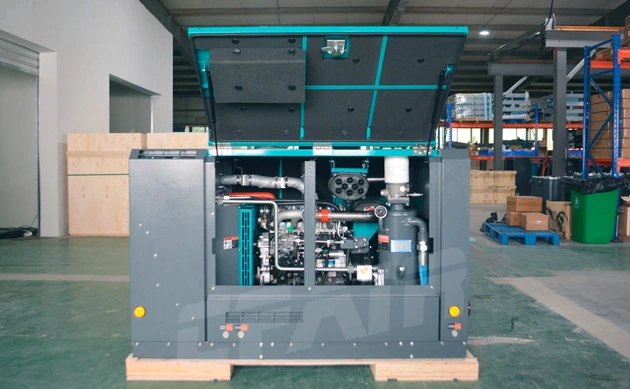

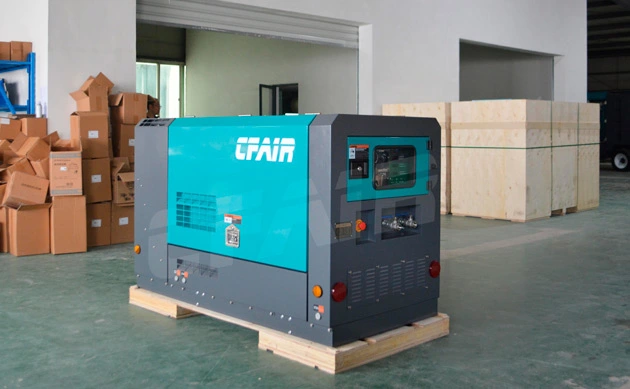

The CF130BCI-7 air compressor, powed by a diesel engine from ISUZU, delivers air capacity 3.7 m³/min (130 CFM) and works at 7 Bar (101.5 PSI) pressure. This truck mounted diesel air compressor ensures reliable performance, making it an ideal choice for diverse applications, from construction sites to industrial tasks, with precision and efficiency.
Model: CF130BCI-7
Air delivery: 3.7 m³/min | 130 CFM
Pressure: 7 Bar | 101.5 PSI
Compressor diesel engine: ISUZU
Reliable Air Compressors: CFAIR air compressors made using 100 cfm diesel air compressor and provide excellent reliability. They can satisfy needs consumers with regards to reliability. The quality of air compressor will provide long service life can be great way protect the interests customers.
Efficient Air Compressors: CFAIR air compressors feature advanced technology, and highly 100 cfm diesel air compressor meet the demands of customers high-efficiency. The air compressor's efficiency can as high as 90 percent! This can effectively save energy and reduce operating costs.
Inspection and Maintenance: Every machine been carefully inspected by team professional engineers before leaves factory. We insists on proven manufacturing techniques, complete loading tests prior shipment, and outstanding after sales service.
Control System
• Integrated starting unloader control for initial engine warm-up.
• Automatic zero to 100% capacity control by means of engine speed regulation and compressor inlet valve modulation.
• Shutdown protection for critical parameters including engine oil pressure, engine coolant temperature and compressor discharge air temperature.
Operator Interface:
• Removable starter key to prevent unauthorised operation.
• Comprehensive analogue and digital instruments supplemented by status and warning lights.
Noise Control
• Super silent full load noise levels from as low as 64 dB(A) at 7 m.
• Low engine and air end speed design is intrinsically quieter.
• Steel body panels lined with sound absorbent material.
• Computer aided sound path analysis and attenuation design.
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.

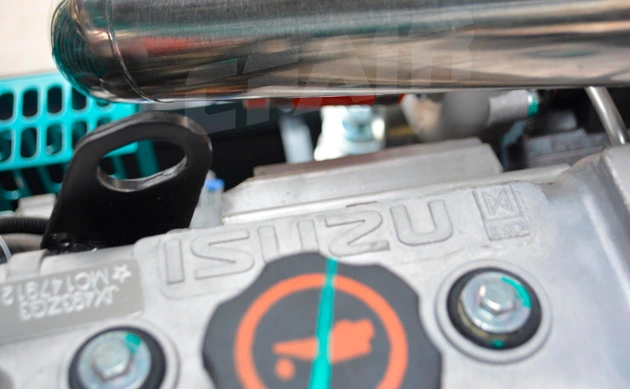

Diesel Engine
• The engine match selection for each compressor model is based on
achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the diesel powered air compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
| MODEL | CF130BCI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 2 | |
| Free Air Delivery | CFM (mm³/min) | 130 (3.7) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Discharge Air Temperature | °C | Atmospheric Temperature +20°C |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 1880*915*1220 |
| Weight | kg | 860 |
Note: Please feel free to contact us if any more customized requirements!
The CF130BCI-7 diesel air compressor, powered by an ISUZU engine, excels in various applications:
Construction Sites: Ideal for powering pneumatic tools.
Industrial Tasks: Provides efficient compressed air for diverse applications.
On-Site Operations: Enhances precision and efficiency in various tasks.
Mobile Repairs: Perfect for on-the-go fixes with its truck-mounted design.
Versatile Use: Well-suited for a range of applications requiring reliable and powerful compressed air delivery.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
