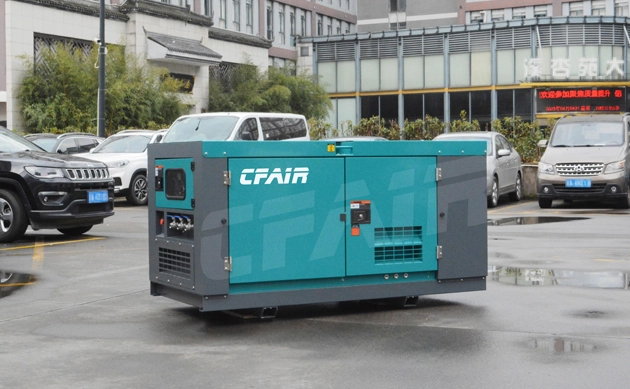

CFAIR 185CFM air compressor are designed for mounting in confined spaces such as on service trucks. They are also ideal for stationary applications. Access is only required to one side for routine maintenance. The all-steel cabinets are lockable, silenced and weatherproof. Made in China.
Reliable and efficient Air End: The superior design of the air compressor head ensures exceptional reliability, maintaining consistent performance throughout extended operational periods. This minimizes downtime and interruptions in production.
Cooler: Utilizing premium-grade aluminum material and employing alternating expression cooler fins, we guarantee optimal heat dissipation for maximum cooling efficiency.
Oil Filter: Using reputable filters ensures prolonged operational longevity, ultimately reducing maintenance time and costs.
Air Filter:Two-stage dust removal and filtering system with effciency of up to 99.9% even in heavy-duty environment.
Highly-efficient power transmission: The quality drive belt with automatic tensioning device ensures consistent transmission efficiency and excellent drive system reliability over the entire service life.

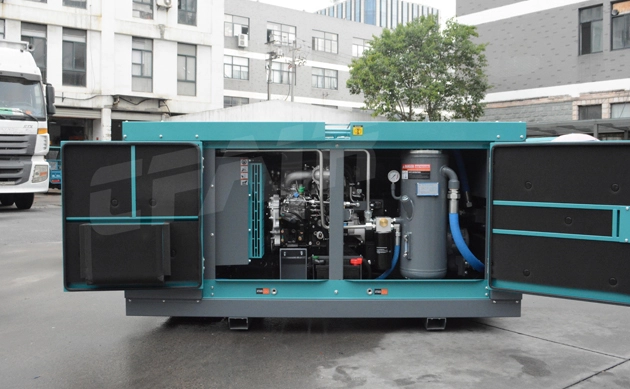

Easy maintenance: The housing is easily opened. All components from diesel air compressor factory are logically arranged and easy to access. Maintenance work is therefore made quick and simple.
Exceptionally quiet: The soundproofed housing reduces operational noise to a minimum. Normal conversation can take place right next to the compressor.
Precision control: Advanced air compressor heads may be equipped with precision control systems, which can achieve precise monitoring and adjustment of pressure, temperature and other parameters to ensure the stability and controllability of the production process.
1)High efficiency: ISUZU diesel engine uses supercharging technology to improve combustion efficiency by compressing air, thereby providing higher power output and better fuel economy.
2)Reliability: ISUZU is a reputable engine manufacturer whose engines are known for their exceptional reliability. Supercharged diesel engines are engineered and tested for exceptional durability and stability, delivering reliable performance in a variety of operating conditions.
3)Energy Saving and Environmental Protection: Supercharged diesel engines generally provide higher combustion efficiency, thereby reducing fuel consumption and emissions. This helps reduce operating costs and comply with modern environmental standards and regulations.
4)Power output: Supercharging technology can improve the power output of diesel engines, allowing them to maintain high torque output under high loads and low speeds, making it suitable for various industrial and commercial applications.
5)Convenient maintenance: The ISUZU engine has a simple design, reasonable layout of parts, and relatively easy maintenance and upkeep. The maintenance manual and technical support provided by the original factory allow users to easily perform routine maintenance and troubleshooting, reducing downtime and extending equipment life.
| MODEL | CF185BI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 3 | |
| Free Air Delivery | CFM (mm³/min) | 185 (5.2) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 2100*980*1100 |
| Weight | kg | 930 |
Note: Please feel free to contact us if any more customized requirements!
The CFAIR 185 CFM box-type air compressor, powered by an efficient ISUZU diesel engine, is specifically designed with a short profile, making it an ideal choice for installation on trucks. This compact configuration enhances its suitability for mobile applications, allowing it to be efficiently mounted on trucks for on-the-go compressed air needs. Tailored for versatility and efficiency, this 185 cfm air compressor for sale caters to the requirements of various truck-mounted tasks, ensuring a reliable and potent supply of compressed air. The ISUZU engine further contributes to its performance, making this box-type diesel powered air compressor a valuable and compact solution for a range of truck-based applications.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
